DAIHATSU TERIOS F800/F850 (2017+) SERVICE WORKSHOP MANUAL IN PDF FORMAT (2300 PAGES) SUPPLIED AS DOWNLOADABLE LINK.
THIS IS THE COMPLETE WORKSHOP MANUAL WHICH INCLUDES 1.5L ENGINE 2NR-VE; AUTOMATIC TRANSMISSION, BODY/CHASSIS AND WIRING DIAGRAM. THE MANUAL FEATURES HUNDREDS OF TUTORIAL PICTURES, EXPLODED DIAGRAMS. TORQUE SETTING, ETC...

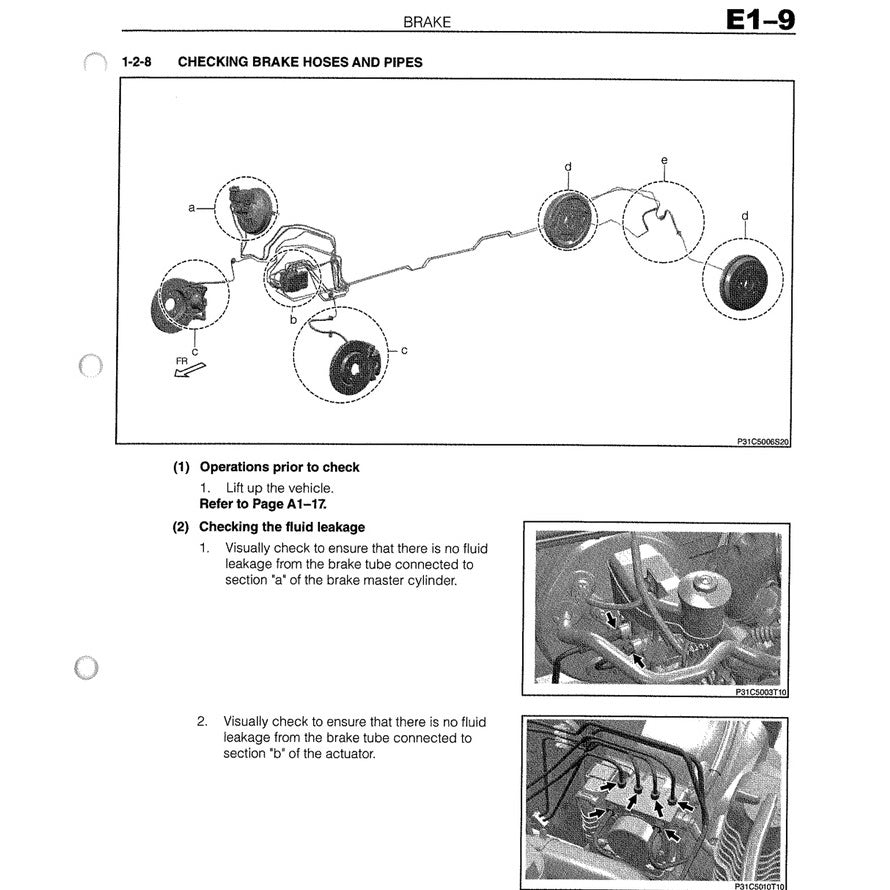

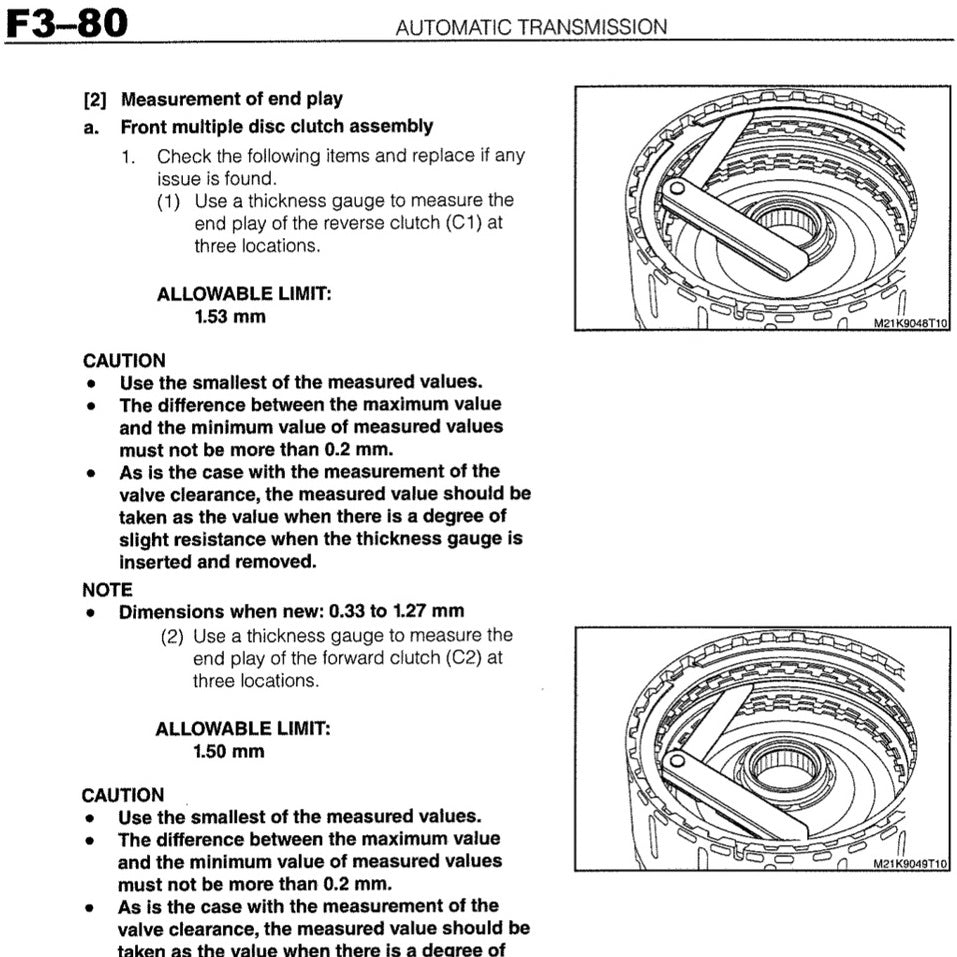

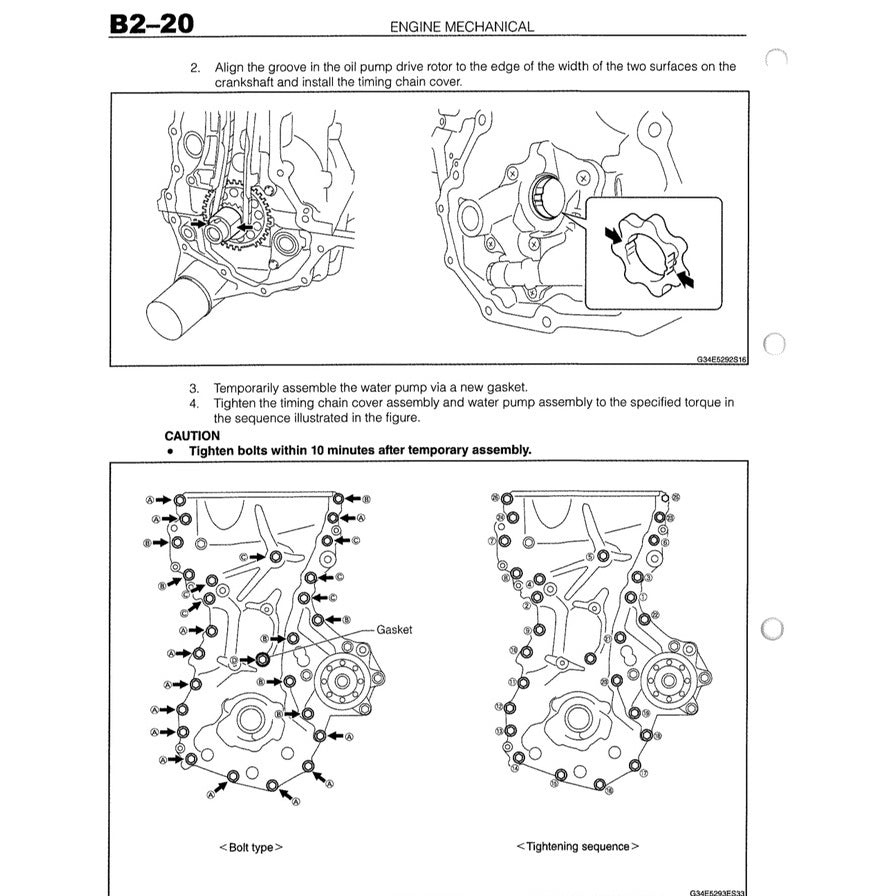

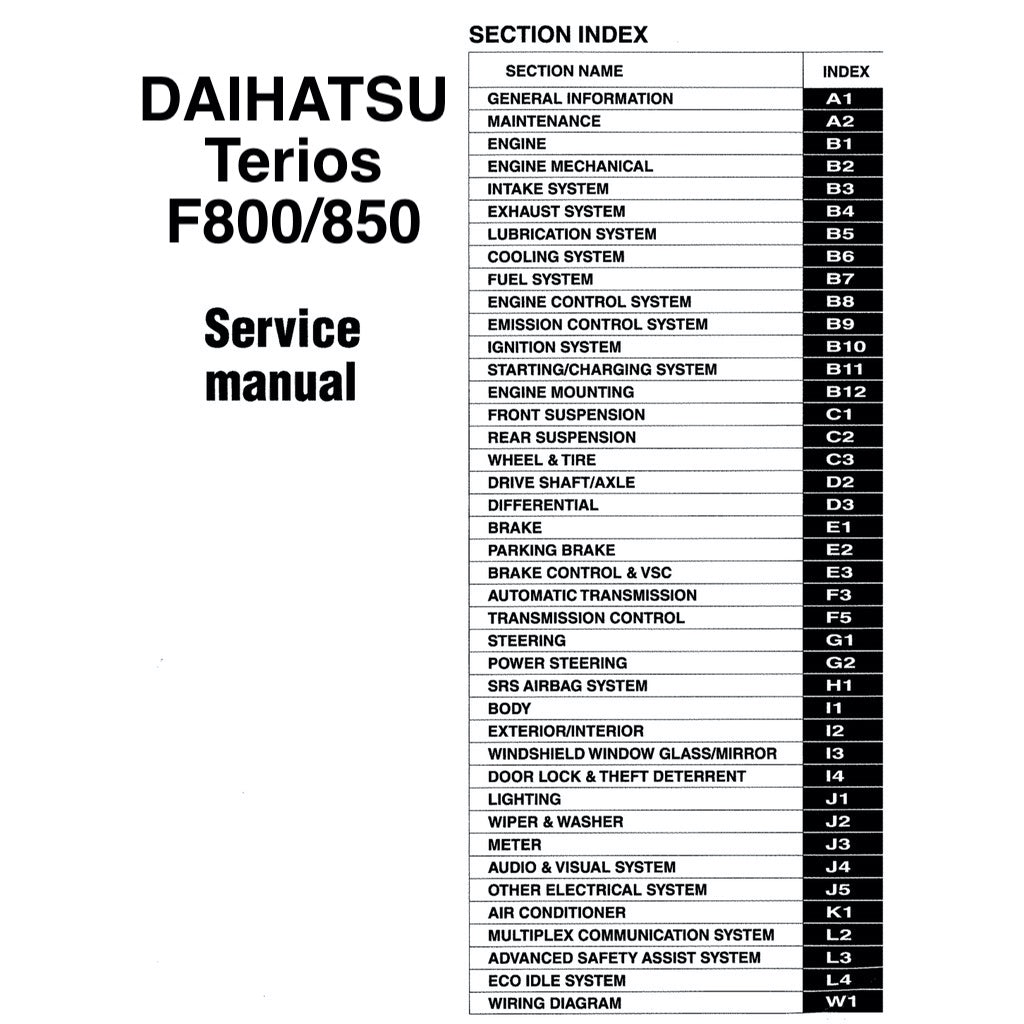

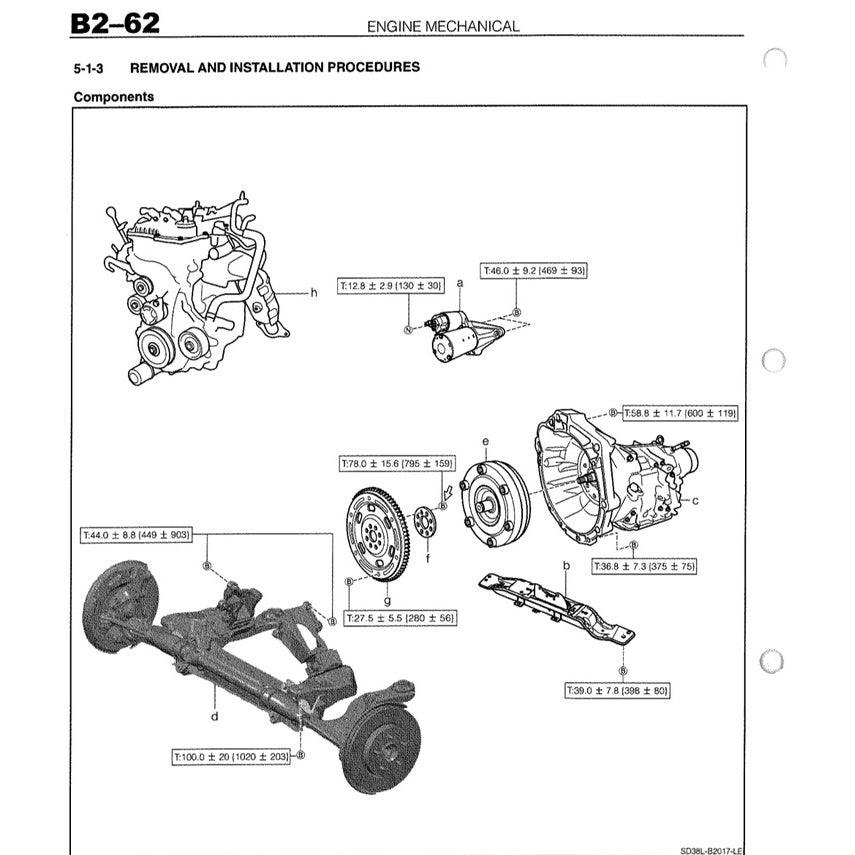

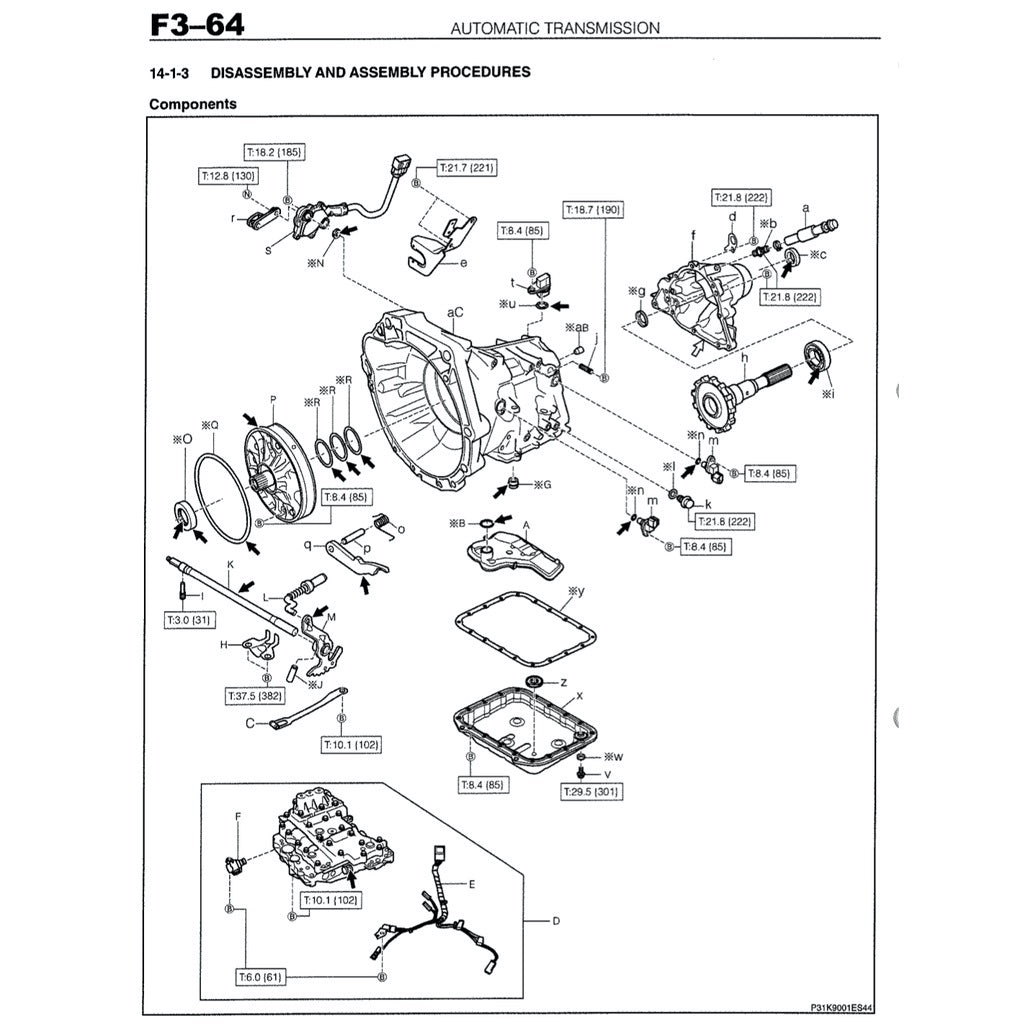

CONTENTS (SEE PICTURES):
- GENERAL INFORMATIONS/SPECIFICATIONS/SERVICE/MAINTENANCE
- ENGINE, ENGINE SYSTEMS AND CONTROLS (2NR)
- TRANSMISSION & TRANSAXLES: AUTOMATIC TRANSMISSION AND CONTROLS
- RUNNING GEARS INCLUDING SUSPENSION & STEERING, BRAKE, ABS, WHEELS & TYRES
- BODYWORK
- HVAC

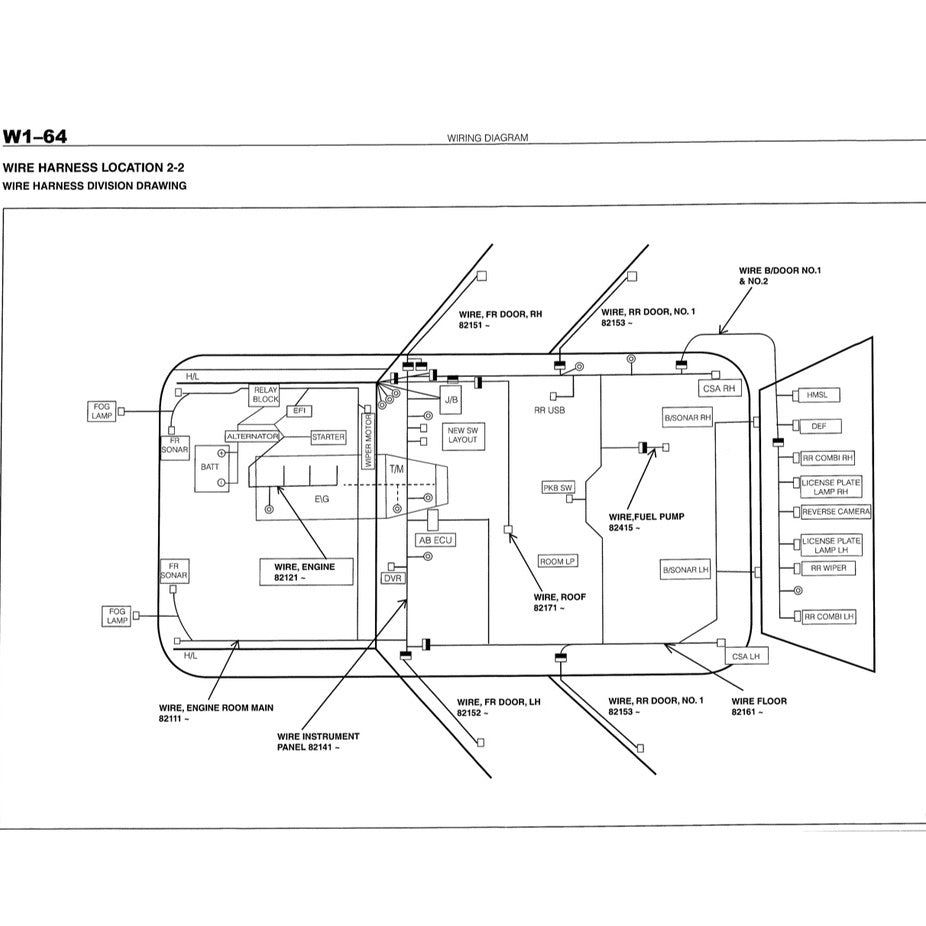

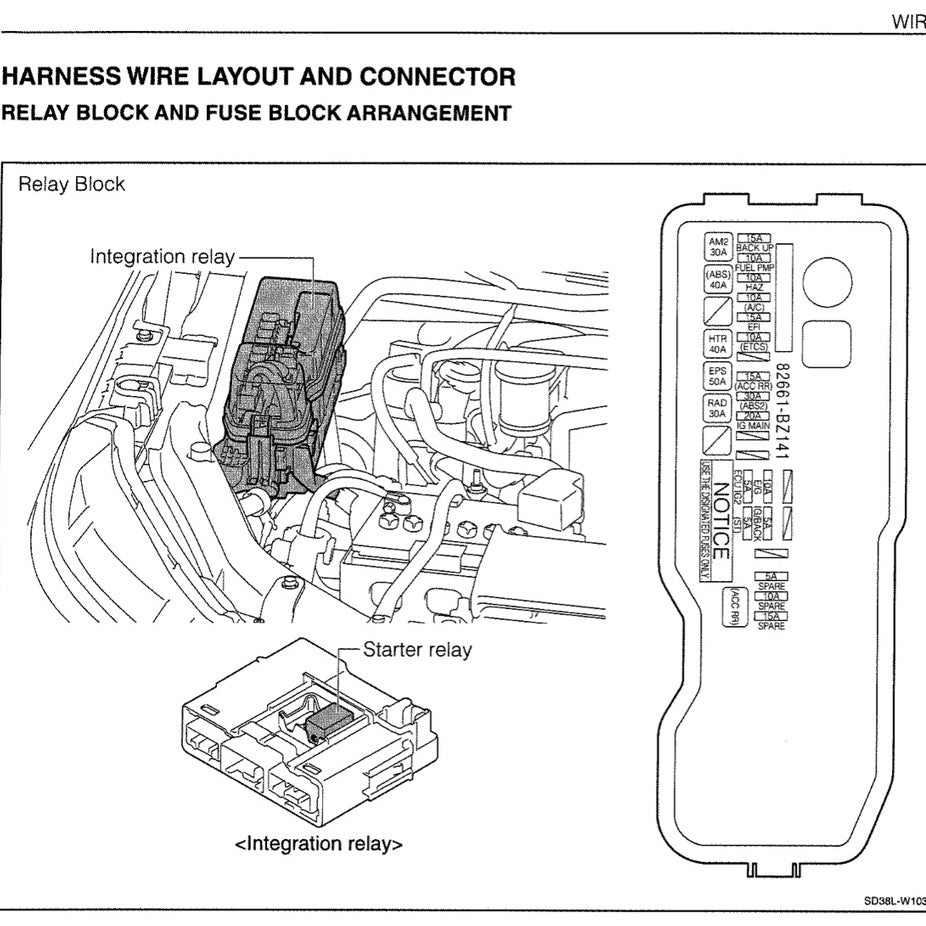

- BODY ELECTRICAL WIRING DIAGRAMS INCLUDING SYSTEMS DIAGRAMS, WIRING HARNESS OUTLAY AND CONNECTORS IDENTIFICATION
REFERENCE POWERTRAIN
Engine: 1.5 L 2NR-VE I4
Transmission
5-speed manual
4-speed automatic
