FIAT 500 (2009-2016) SERVICE WORKSHOP MANUAL IN PDF FORMAT (8582 PAGES) SUPPLIED AS DOWNLOADABLE LINK.

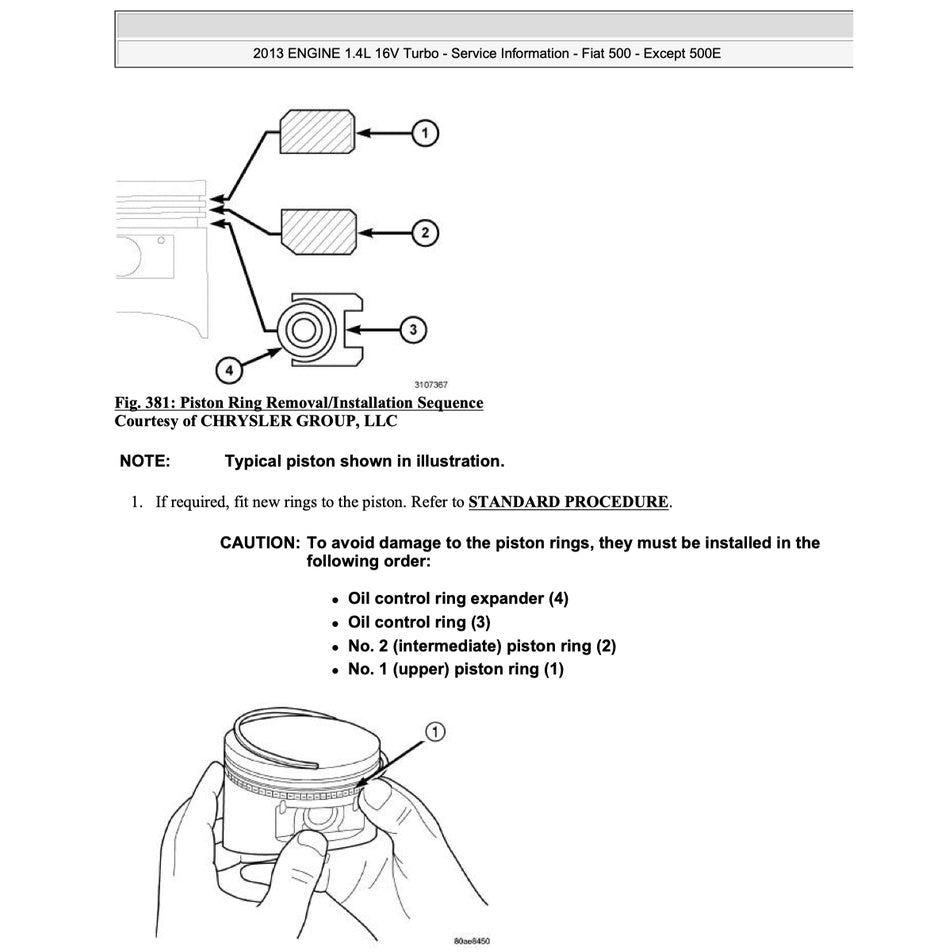

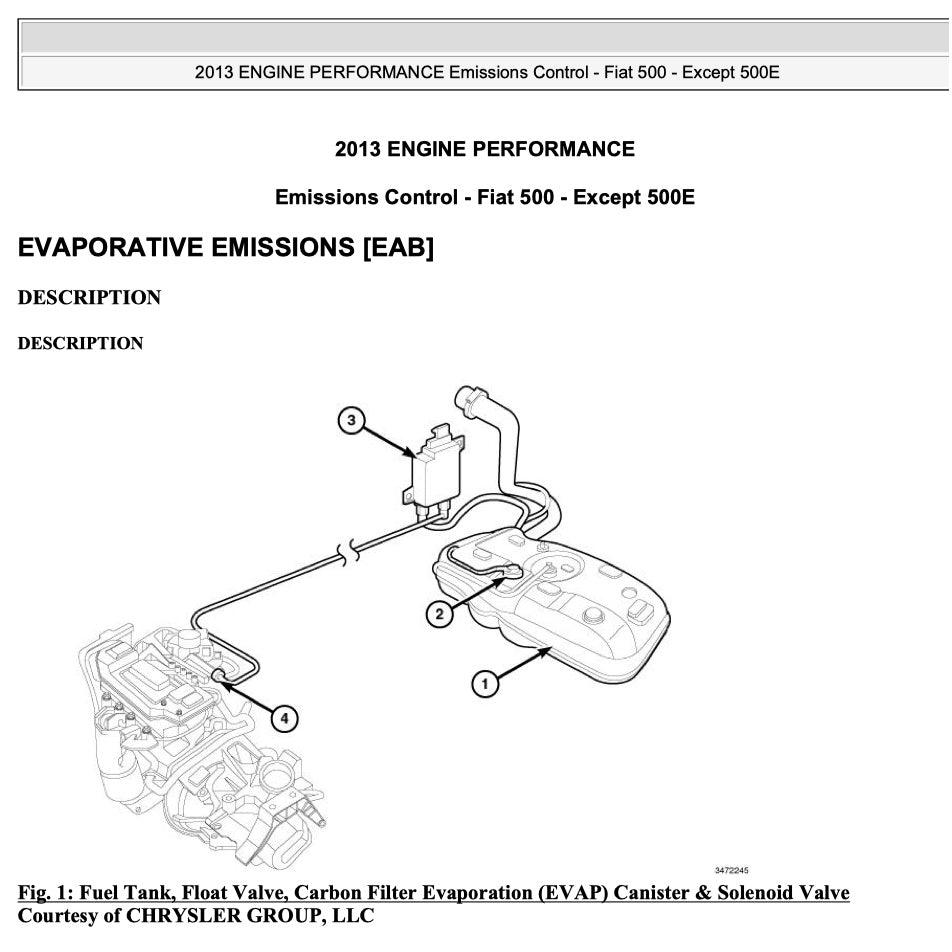

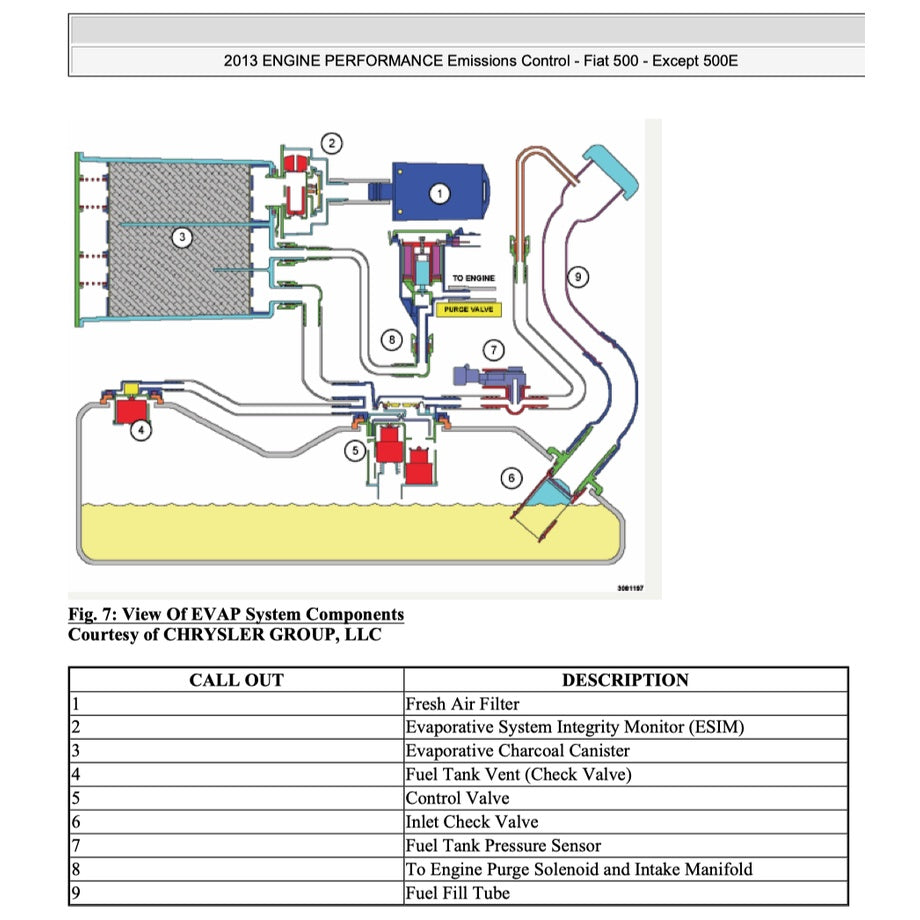

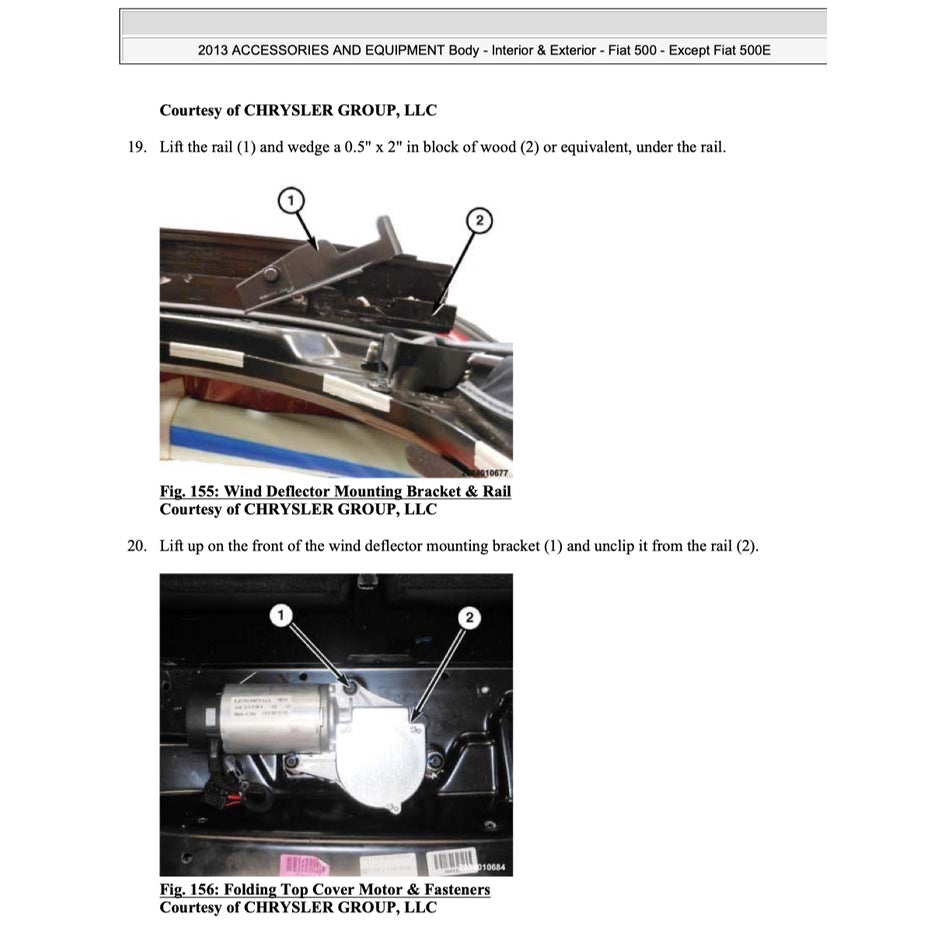

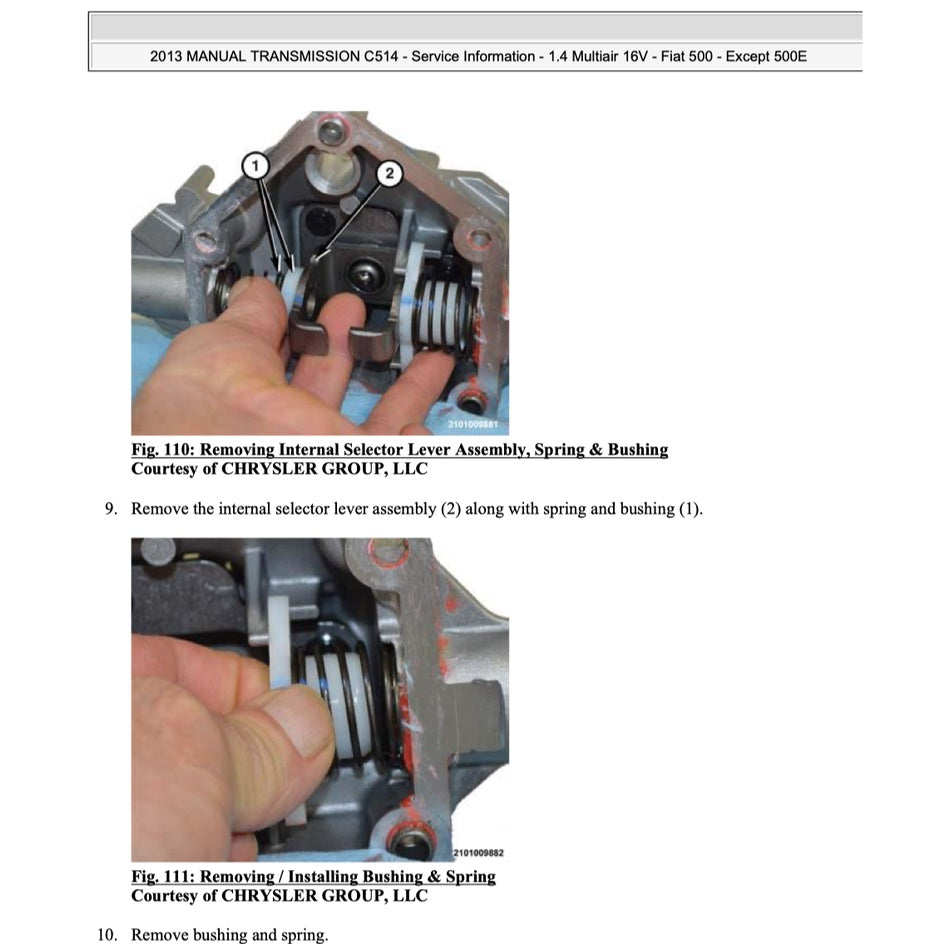

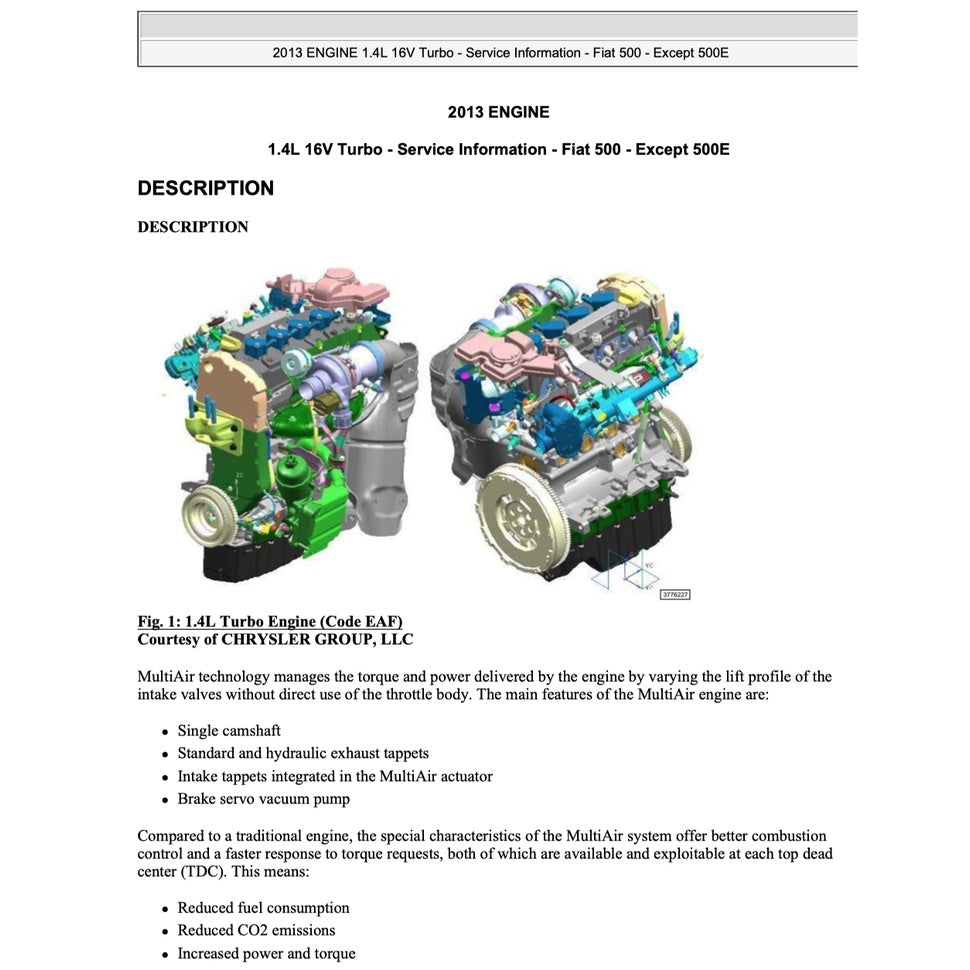

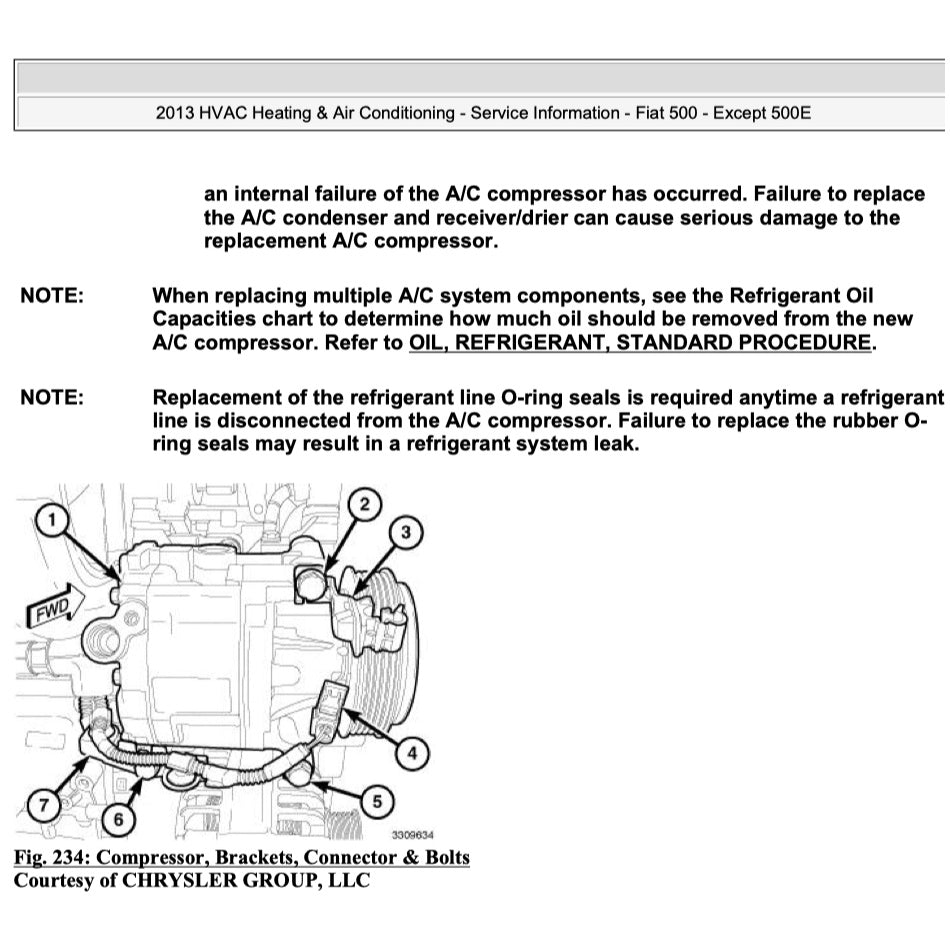

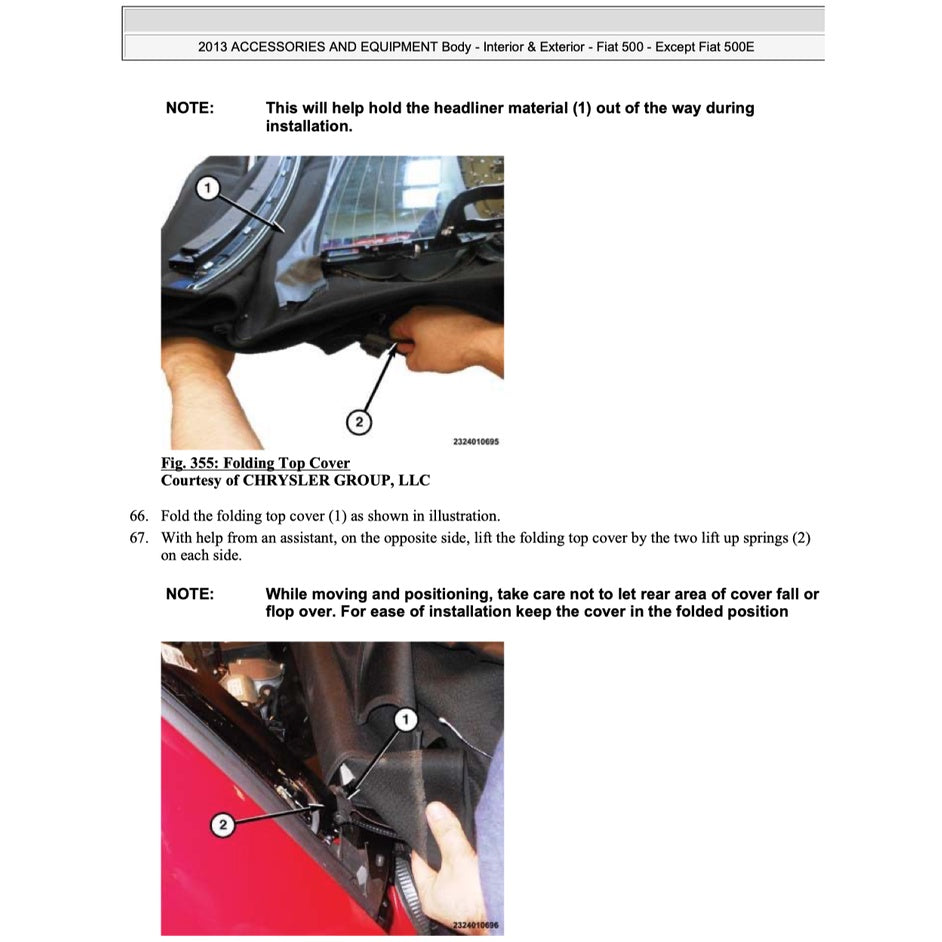

Another rarity brought to you by . This massive manual is the result of a reverse engineering exercise carried out by the largest worship in the US, every nut and bolt is accounted for and thoroughly illustrated with thousands of exploded views, diagrams and high resolution pictures.
ENGINE COVERED: 1.4L 16V TURBO, 1.4L 16V MULTIAIR, 1.4L 8V E100
EXCLUSION: DOES NOT COVER THE FIAT 500E (2014 ONWARDS)
POWERTRAIN
Engine
Petrol:
0.9 L TwinAir Turbo I2
1.0 L GSE FireFly I3 mild hybrid
1.2 L FIRE I4
1.4 L FIRE Multiair I4
1.4 L FIRE TurboJet I4
Diesel:
1.3 L MultiJet I4
Transmission 5-speed manual
6-speed manual[4]
5-speed Dualogic automated manual
6-speed automatic (Aisin)
