FORD FOCUS MK3 C346 (2011-2017) FACTORY SERVICE WORKSHOP MANUAL FOR
OFFLINE VIEWING THROUGH WEB BROWSER AND PDF FORMAT
AVAILABLE AS DOWNLOADABLE LINK.
This is the same type of service manual your local FORD dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. All pages are printable, so run off what you need and take it with you into the garage or workshop.
ENGINE COVERED IN THIS MANUAL: 2.0 L Duratec Ti-VCT I4 GDI, 2.0 L EcoBoost I4 (ST) & 2.3 L EcoBoost I4 (RS)
POWERTRAIN
Engine
Petrol:
1.0 L EcoBoost I3
1.5 L EcoBoost I4
1.6 L Duratec Ti-VCT I4
1.6 L EcoBoost I4
2.0 L Duratec Ti-VCT I4 GDI
2.0 L EcoBoost I4 (ST)
2.3 L EcoBoost I4 (RS)
Diesel:
1.6 L Duratorq TDCi I4
1.5 L Duratorq TDCi I4
2.0 L Duratorq TDCi I4
Transmission
5-speed iB5 manual
6-speed MMT6 B6 manual
5-speed MTX-75 manual
6-speed automatic 6F15
6-speed PowerShift DCT
WHAT'S INSIDE ?
Detailed sub-steps expand on repair procedure information
Notes, cautions and warnings throughout each chapter pinpoint critical information.
Numbered instructions guide you through every repair procedure step by step.
Bold figure number help you quickly match illustrations with instructions.

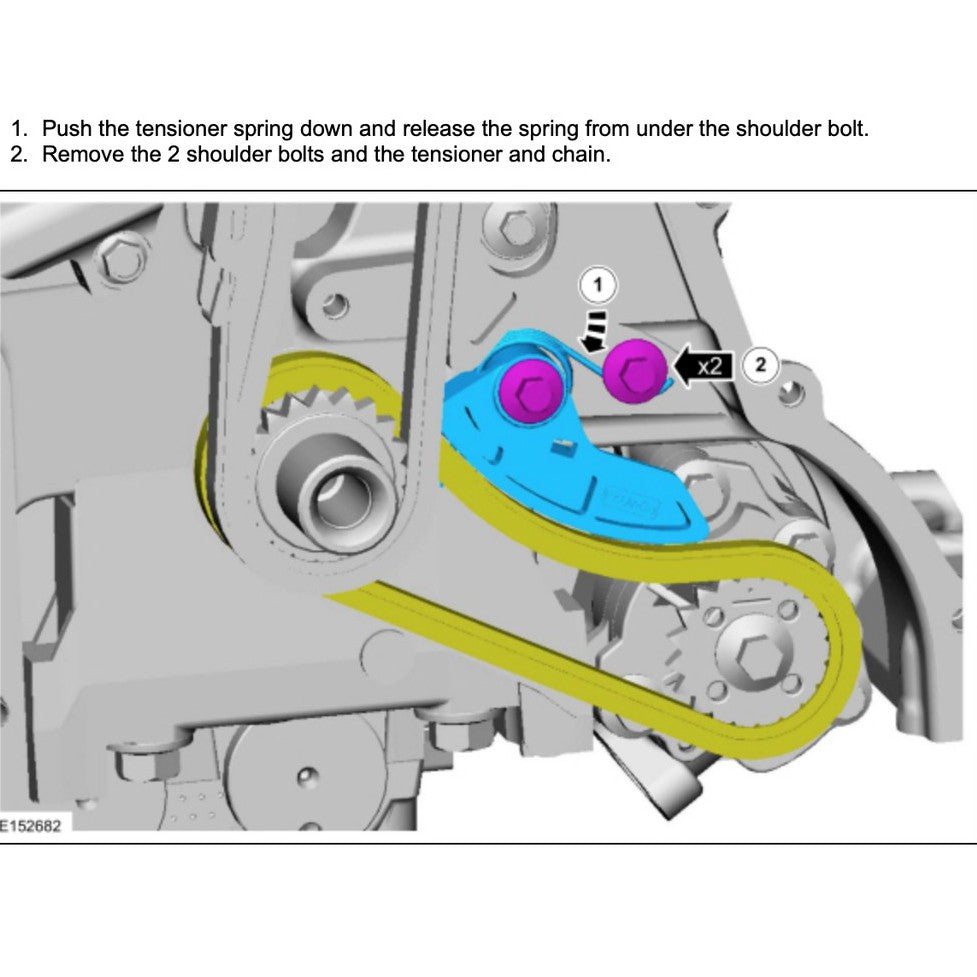

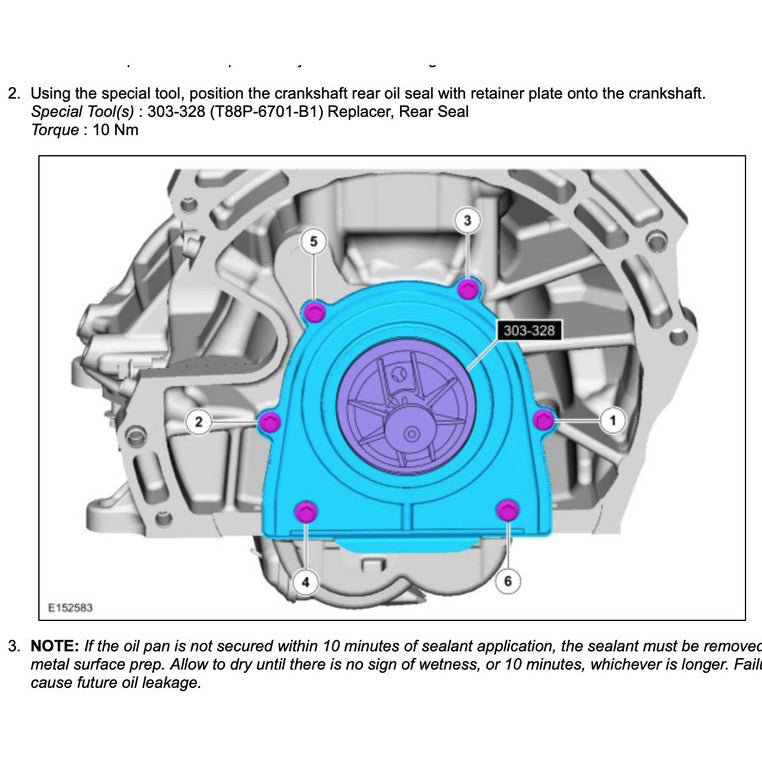

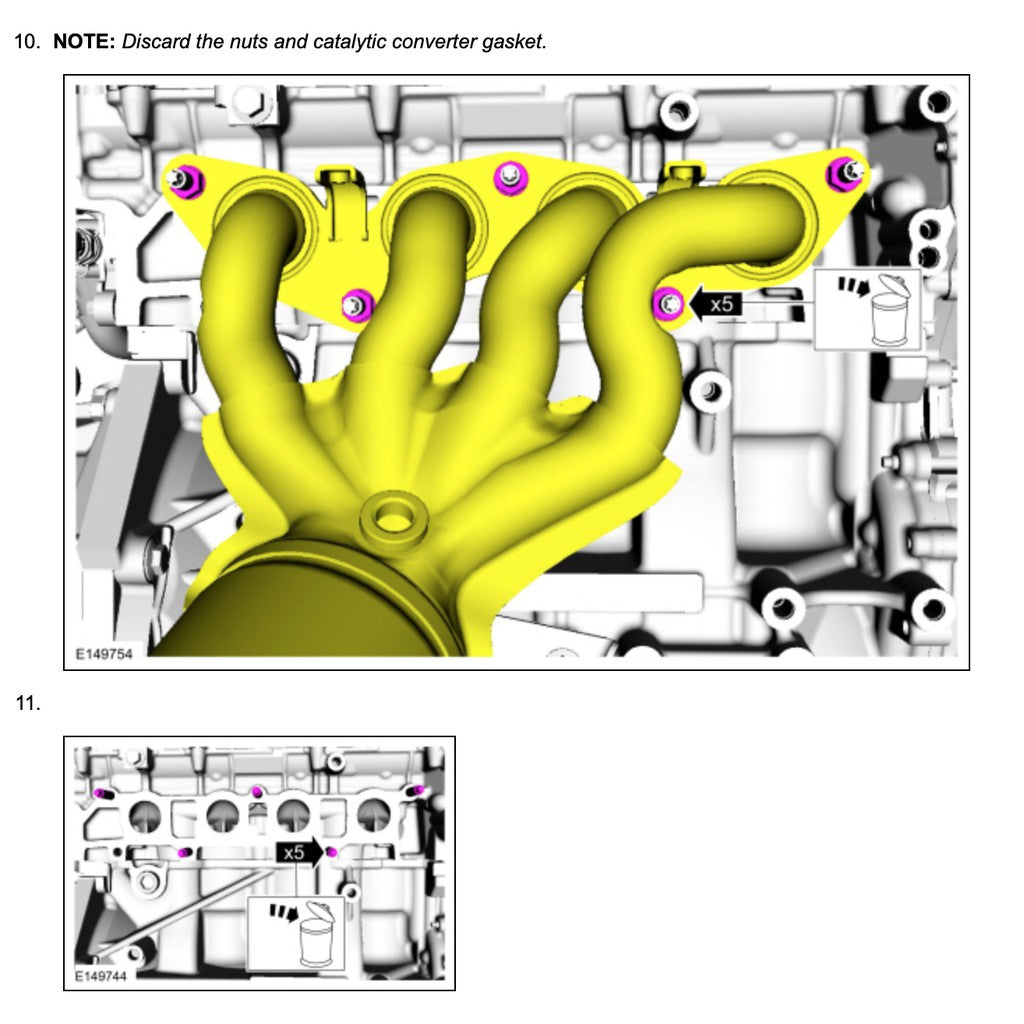

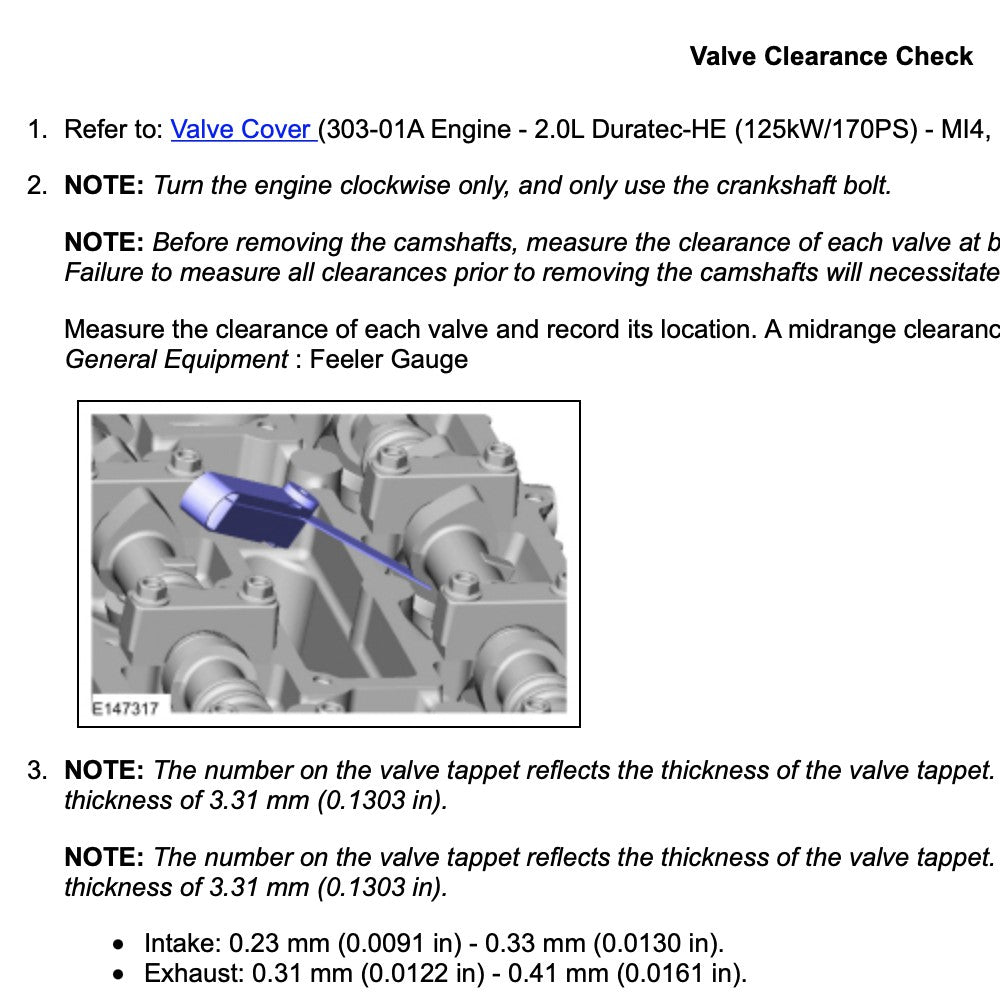

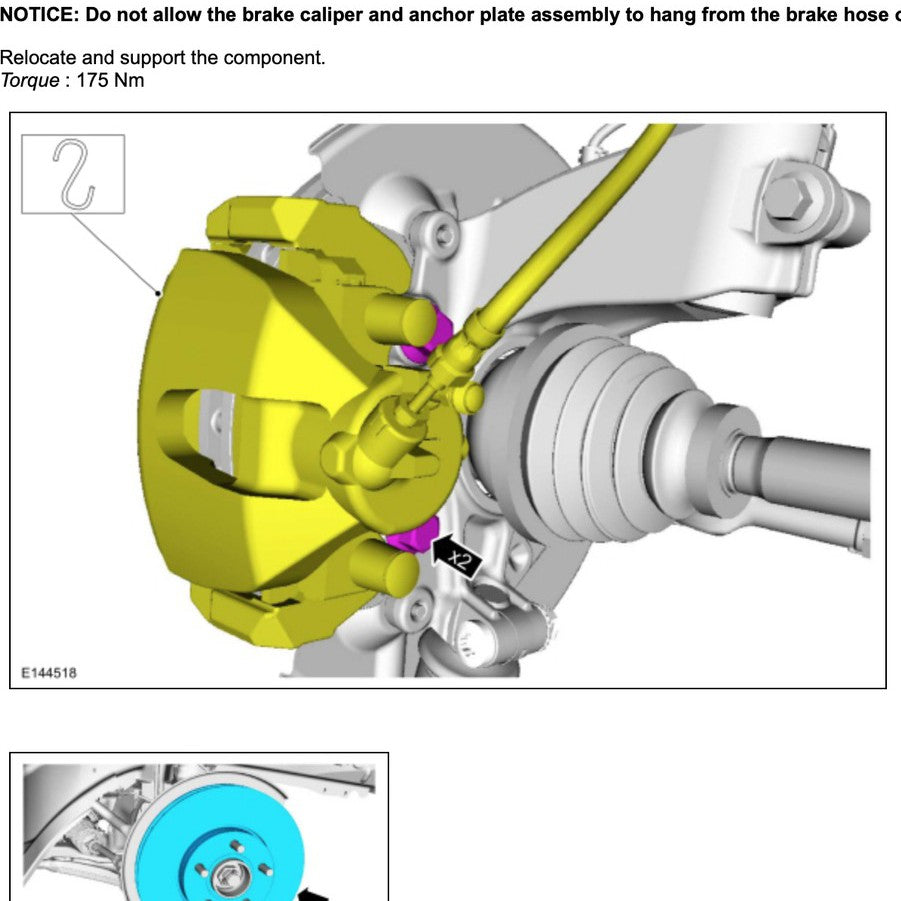

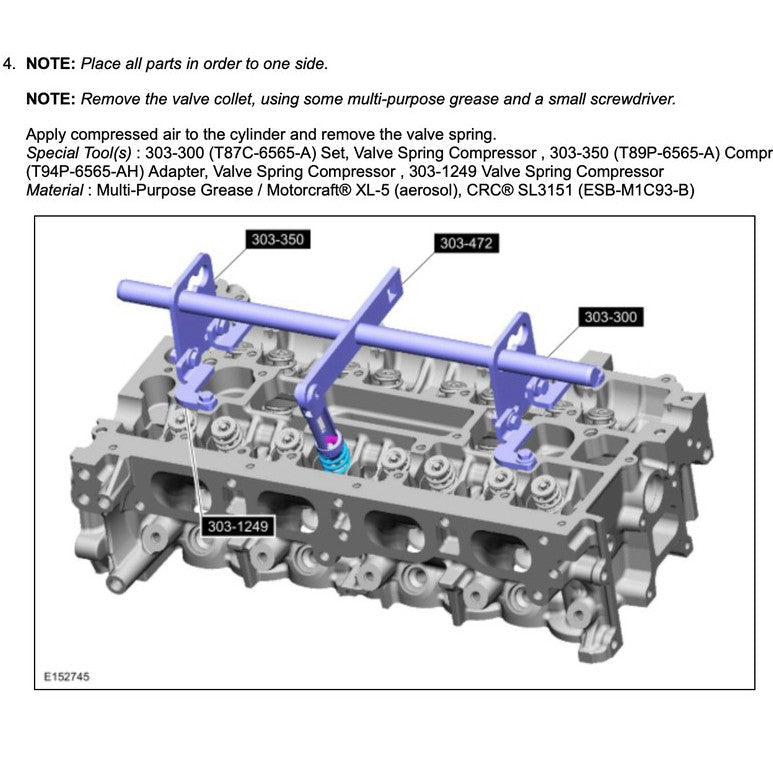

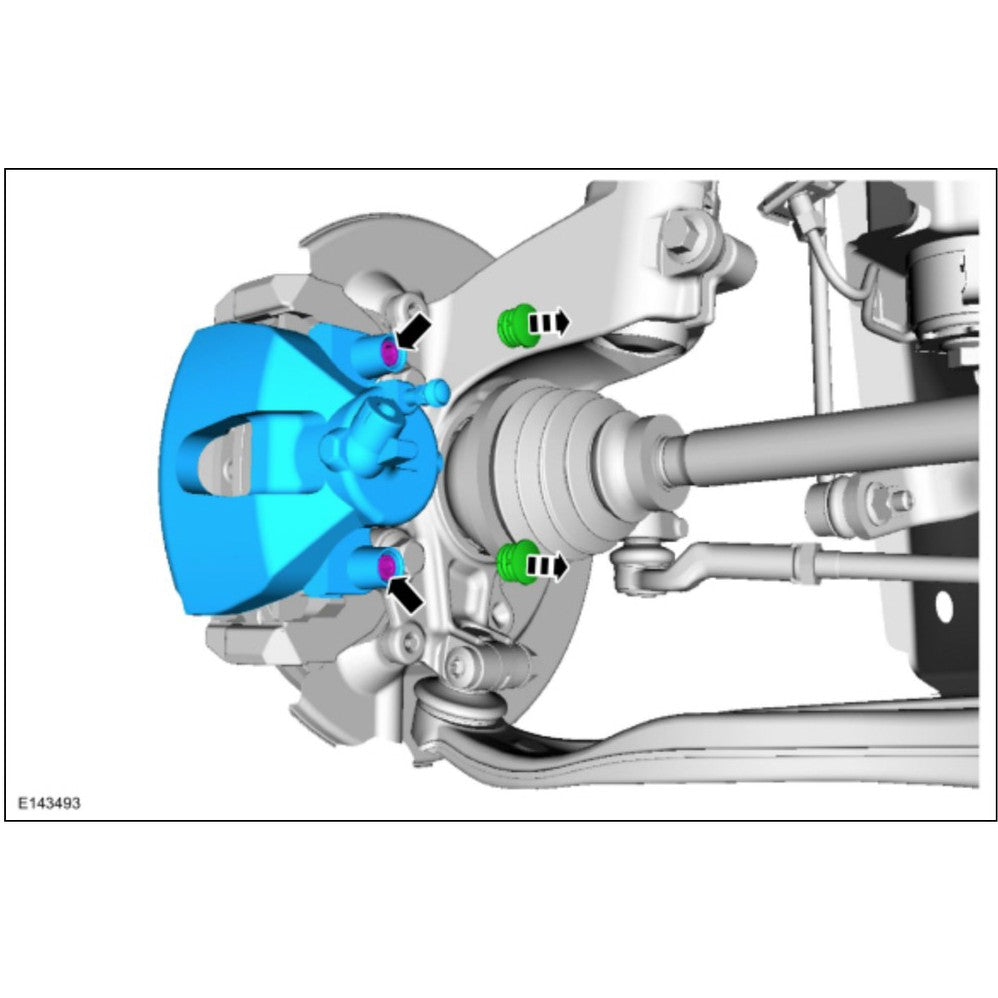

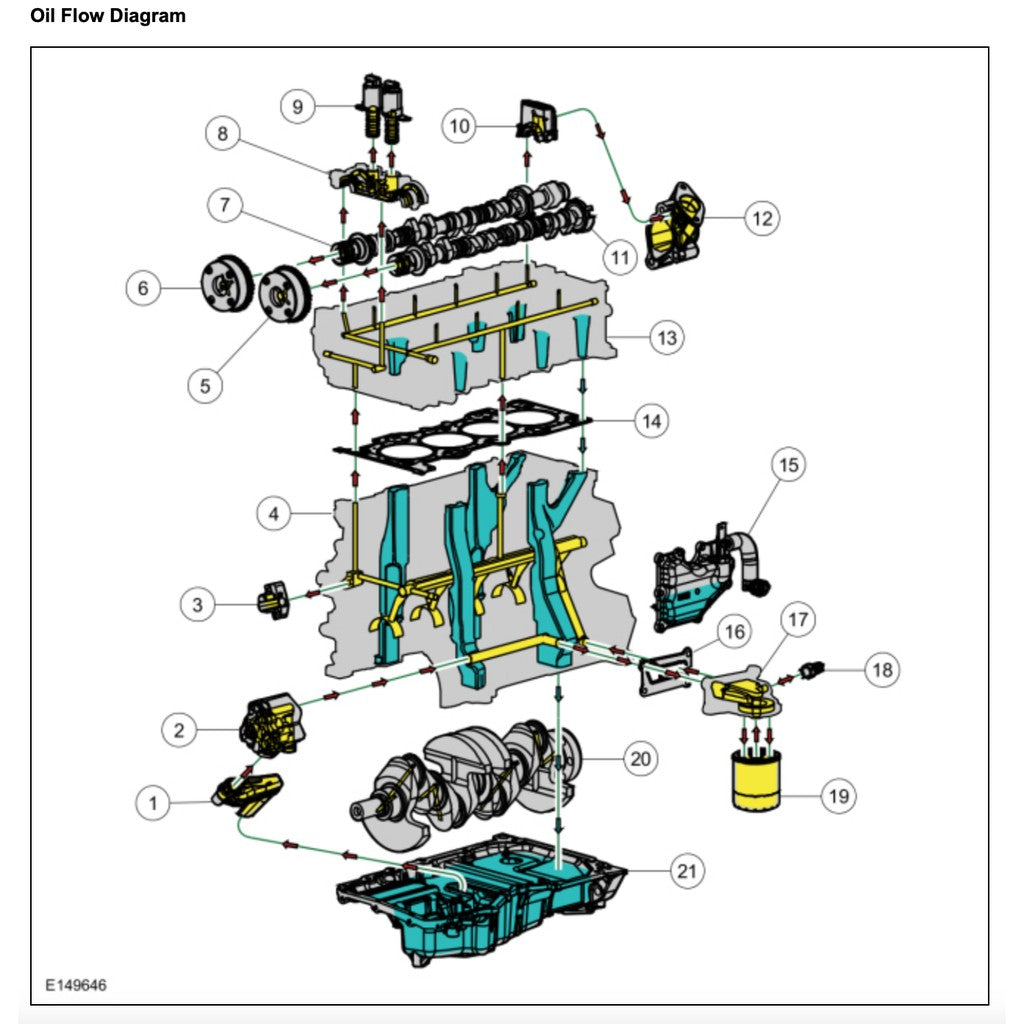

Detailed illustrations, drawings and photos guide you through every procedure.
Enlarged inset helps you identify and examine parts in detail.
Numbered table of contents easy to use so that you can find the information you need fast.
This manual also makes it easy to diagnose and repair problems with your machines electrical system.
Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use
