ISUZU D-MAX TFR/ TFS (2012-2020) SERVICE WORKSHOP MANUAL IN PDF FORMAT (14000 PAGES). THIS IS THE PDF VERSION OF THE FACTORY MANUAL AVAILABLE AS DOWNLOADABLE LINK.

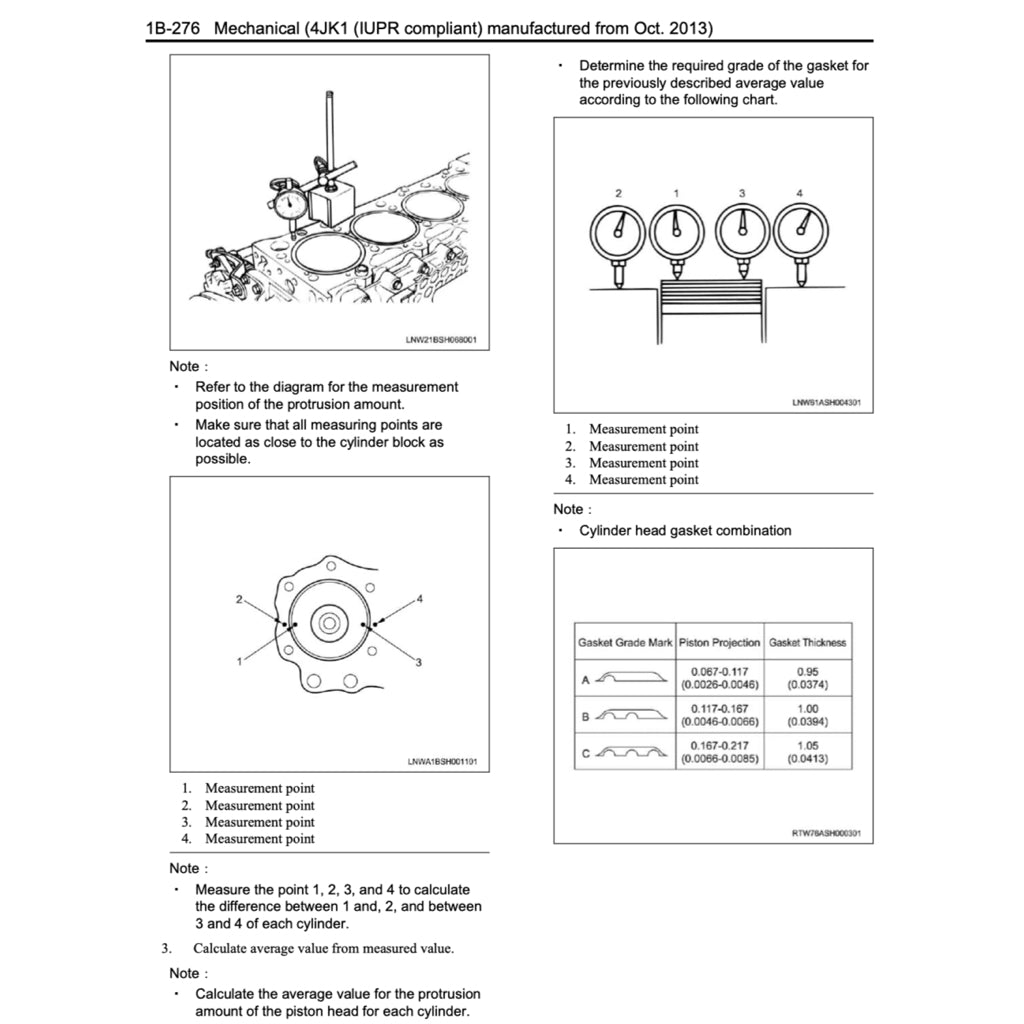

This is the same service manual your local ISUZU dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. All pages are printable, so run off what you need and take it with you into the garage or workshop. These manuals are your number one source for repair and service information.
POWERTRAIN
Engine
Diesel: 2.5 L 4JK1-TCX I4 (ONLY - NOT 4JJ1)
Transmission
5-speed Aisin TB-50LS automatic
6-speed manual AY6
CONTENTS
- GENERAL INFORMATION + MAINTENANCE

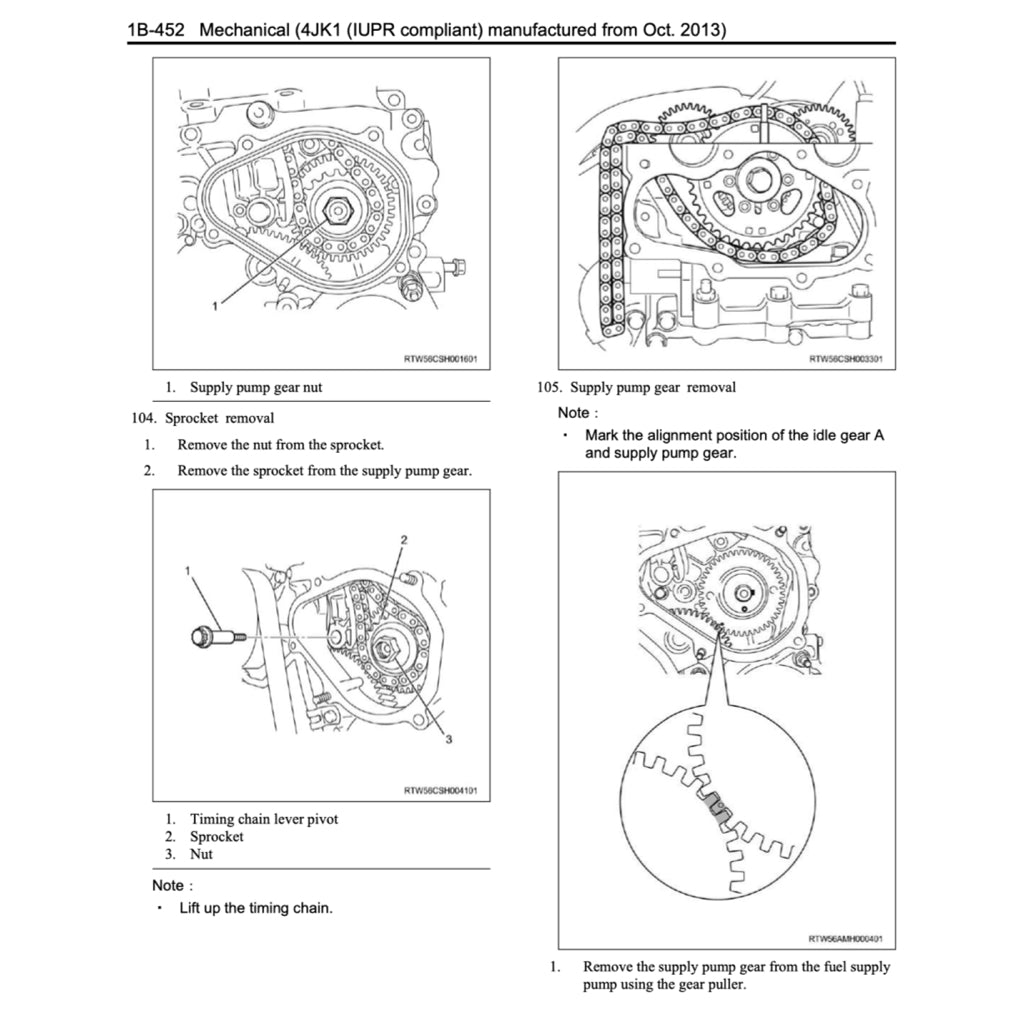

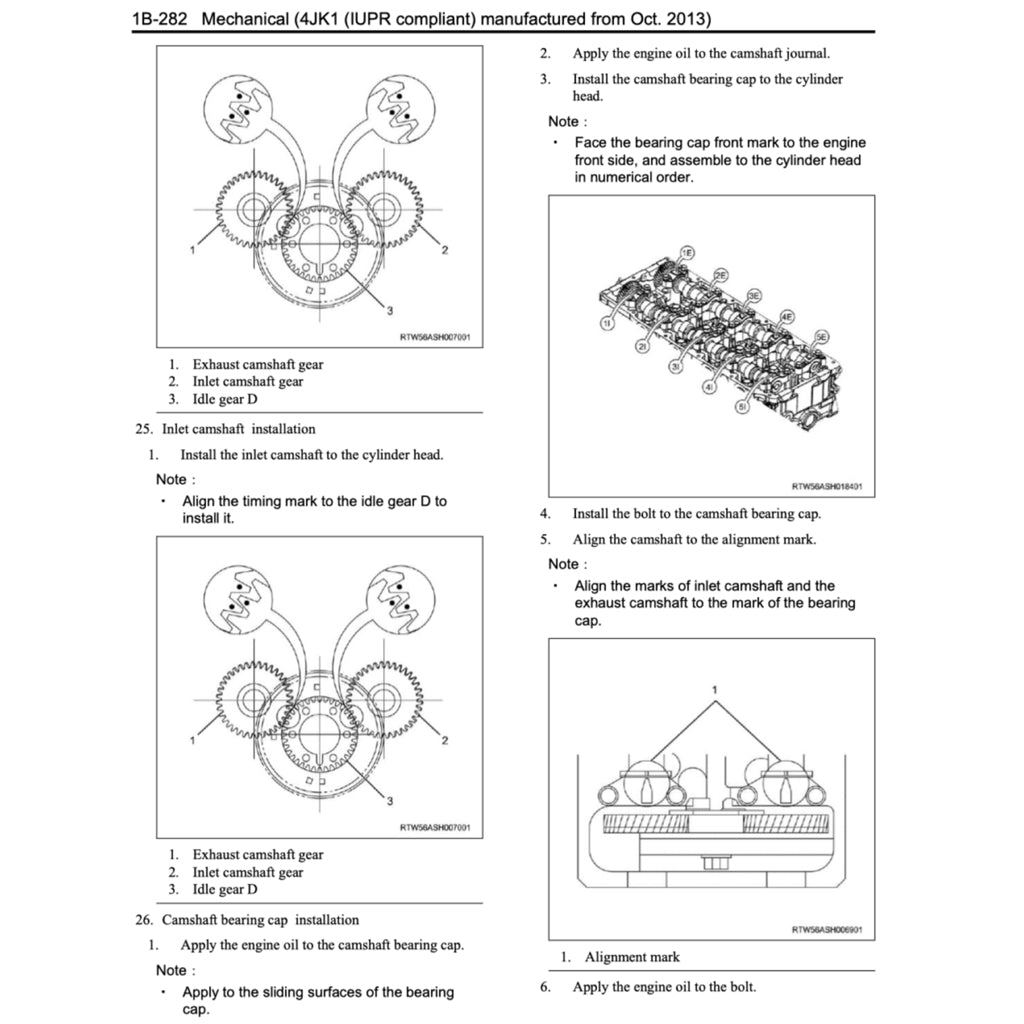

- ENGINE 4JK1 + SYSTEMS

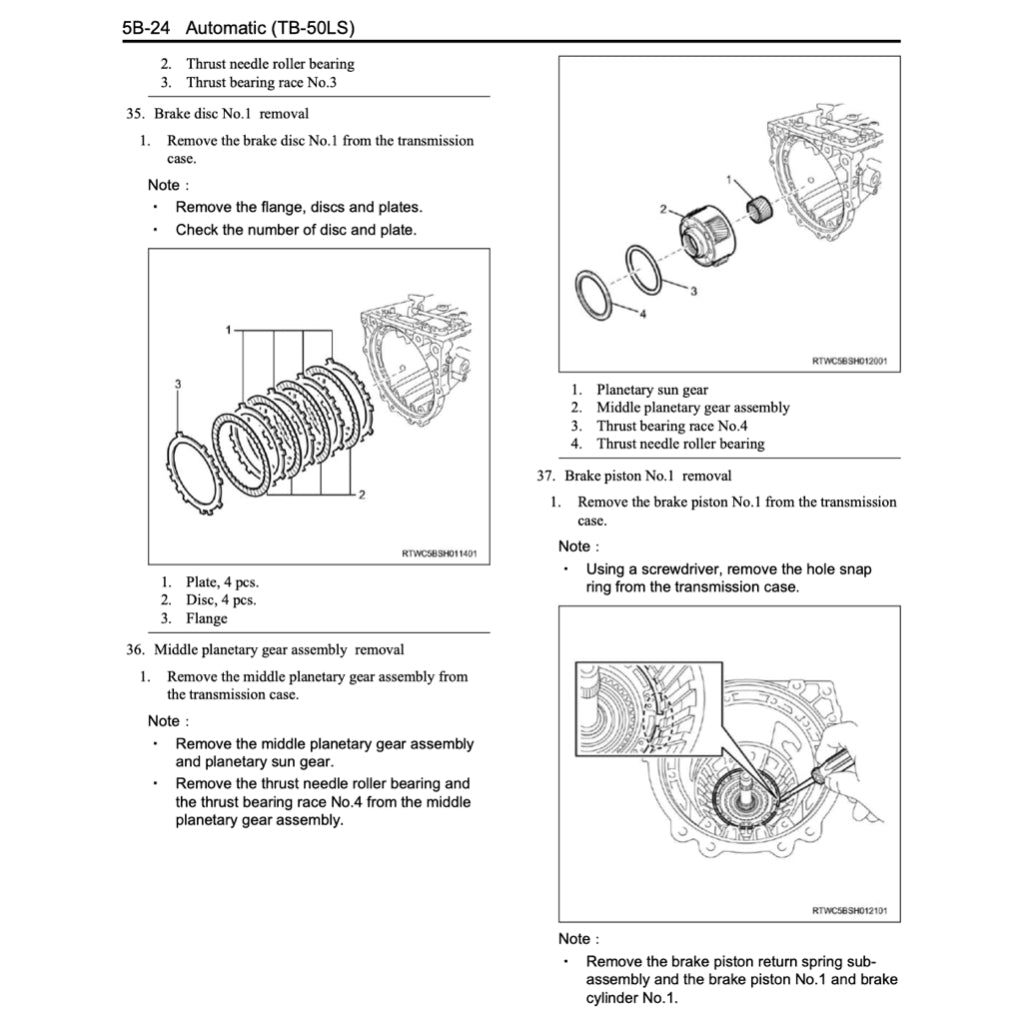

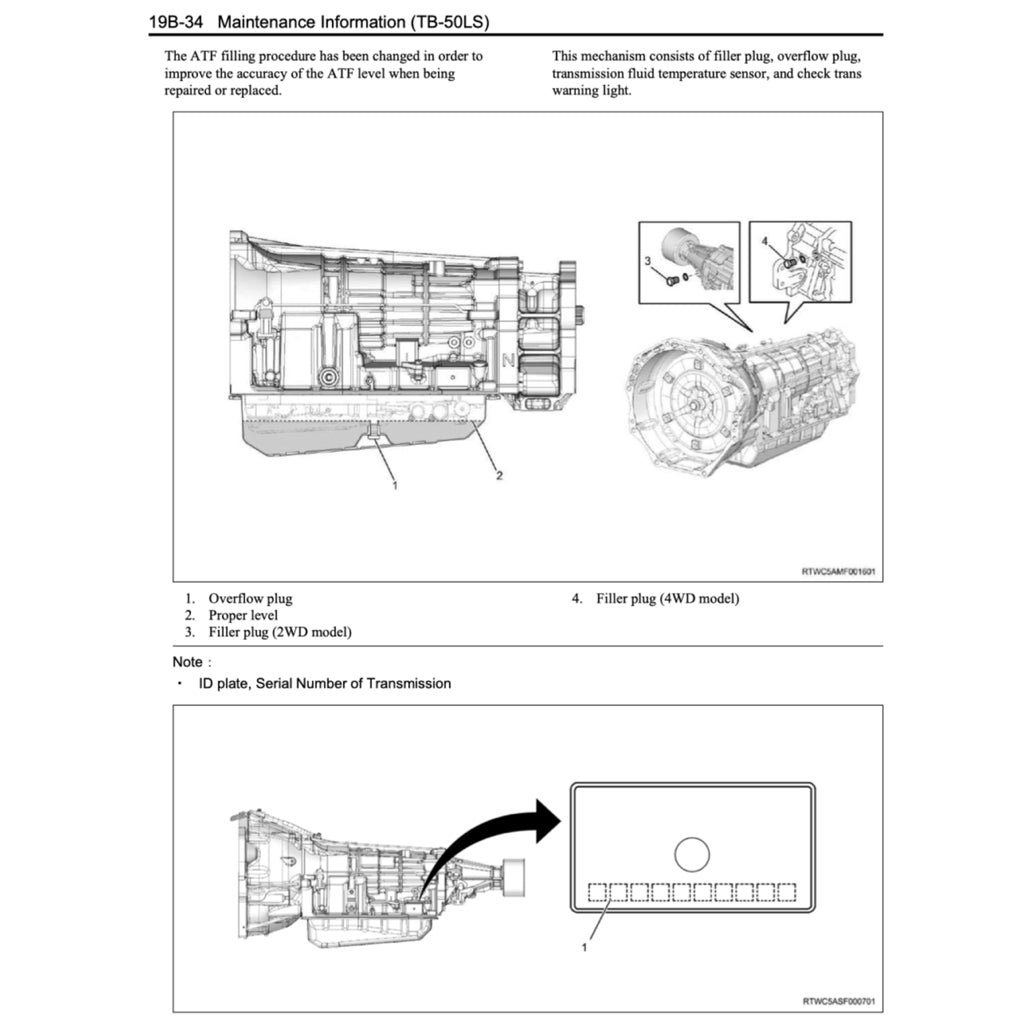

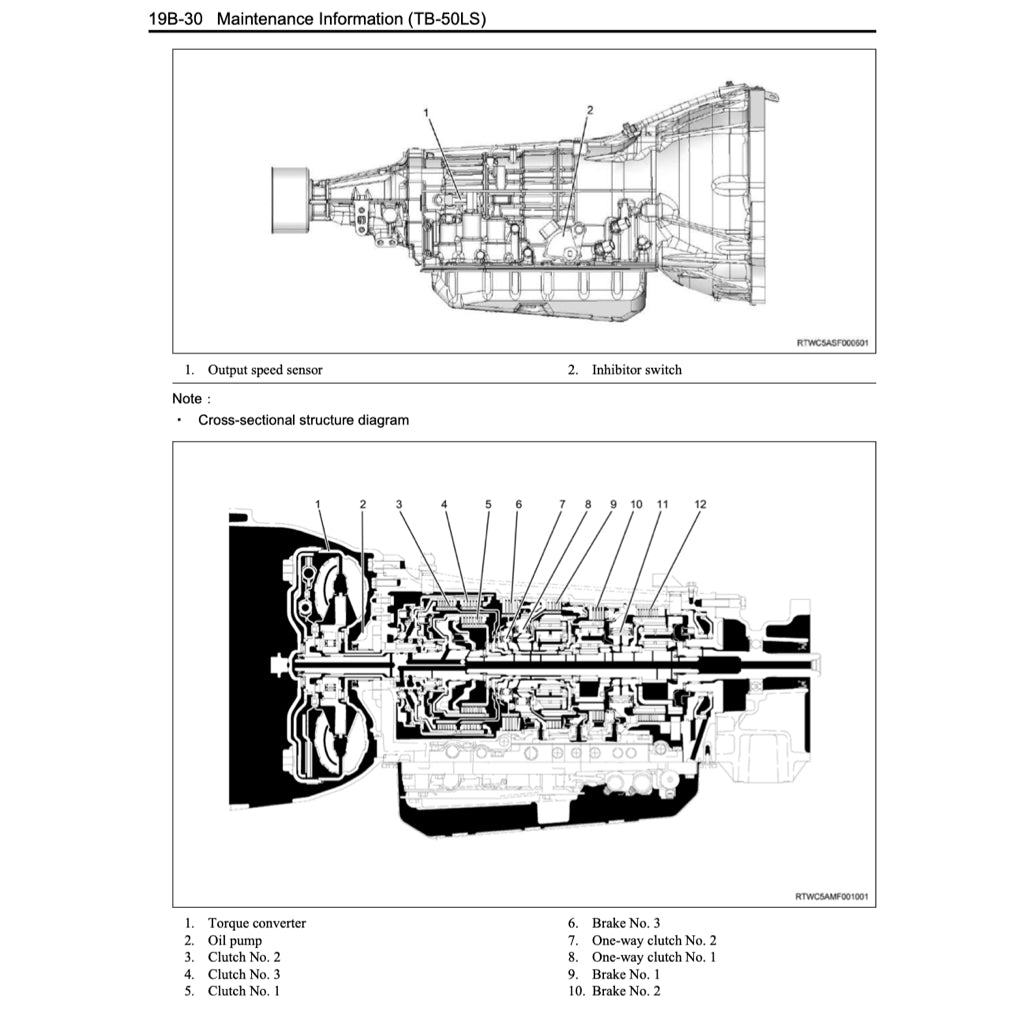

- TRANSMISSION (AT+MT)
- RUNNING GEARS
- BODYWORK
- RESTRAINTS

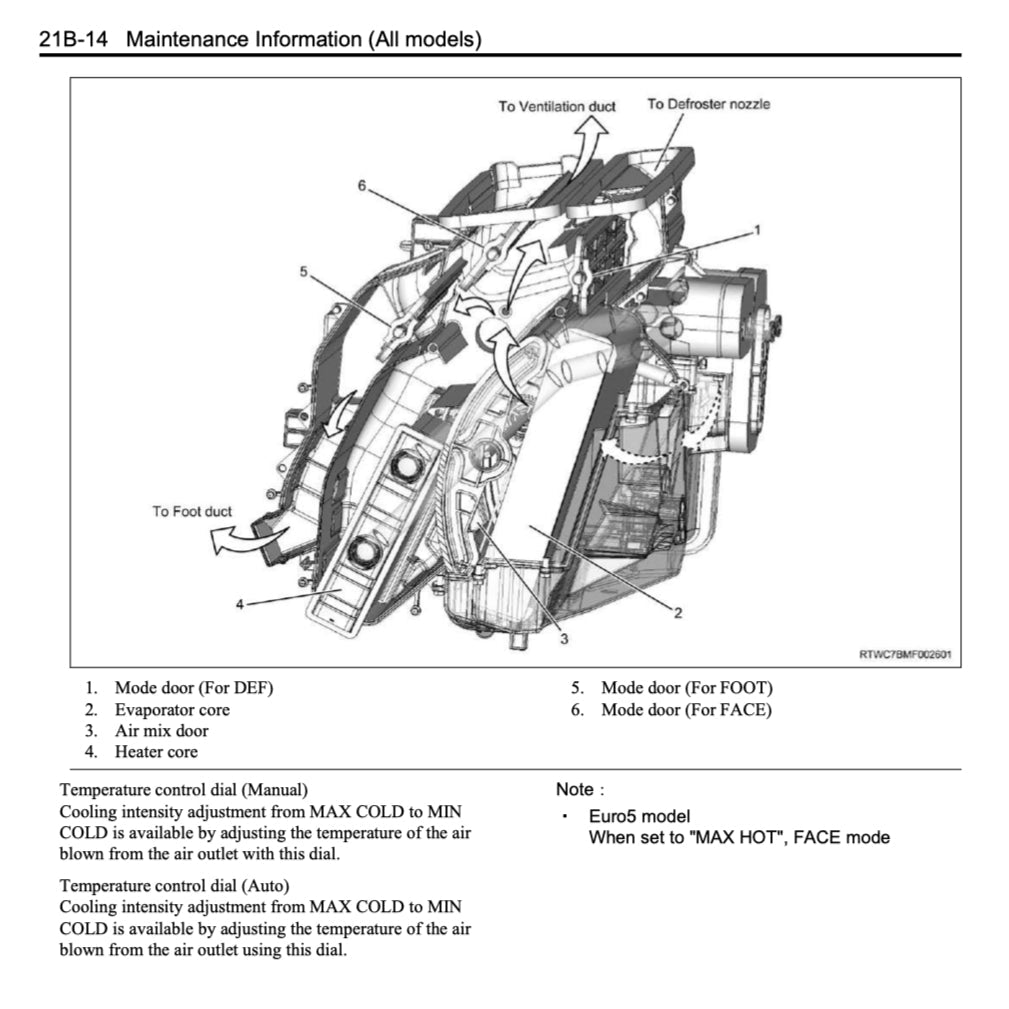

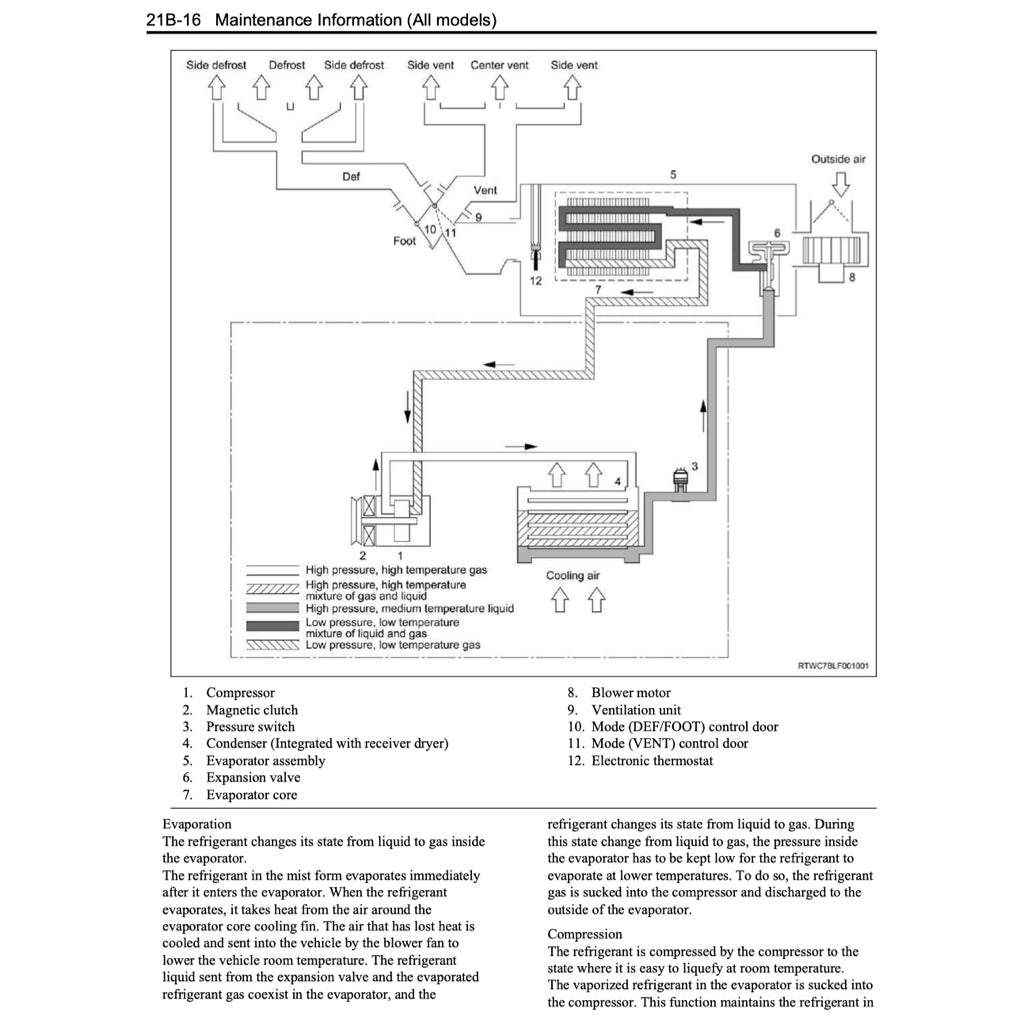

- HVAC
- WIRING DIAGRAMS + COMPONENTS LOCATION+ CONNECTORS LIST
- PARTS CATALOGUE
- OWNER MANUAL
