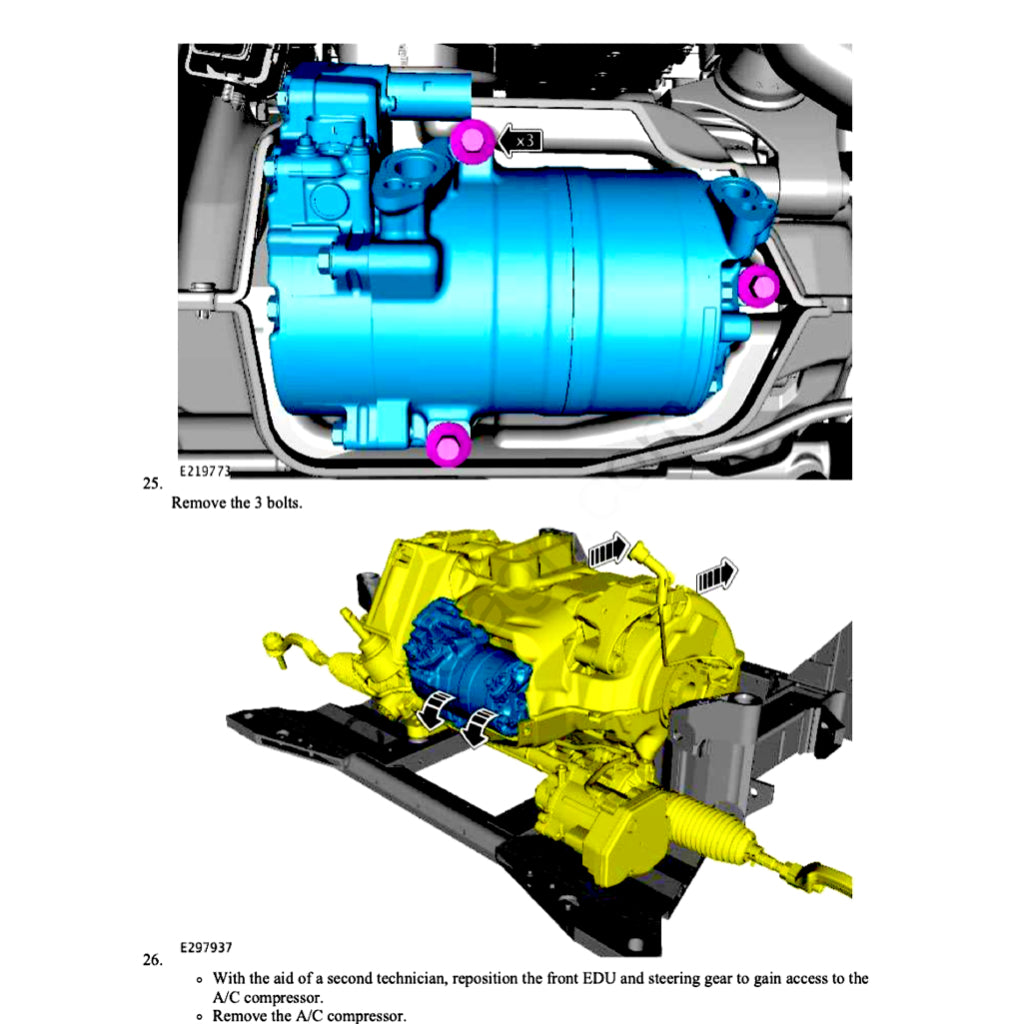

Delve into the technical world of the Jaguar I-PACE EV400 X590 with this comprehensive service manual, covering models from 2018 onwards. This manual, AVAILABLE AS DOWNLOADABLE LINK
POWERTRAIN:
Electric Motor Details: Dual permanent magnet synchronous motors, each offering 200 PS (150 kW), 348 N⋅m (257 lbf⋅ft), cumulatively delivering 400 PS (290 kW) and 696 N⋅m (513 lbf⋅ft).
Transmission: Information on the 1-speed direct-drive reduction system.
Battery Specifications: Insights into the 90 kW·h lithium-ion battery.
Electric Range: Data on the EPA-rated 246 miles (396 km) and WLTP-rated 292 miles (470 km) range.
Charging Options: Details on 11kW AC charging (including specifics for the 7.4kW "1-phase/32A only" AC for 2018–2020 models) and 100 kW DC fast charging.
Ideal for Jaguar I-PACE owners and workshop operatives seeking detailed technical knowledge and repair instructions.
