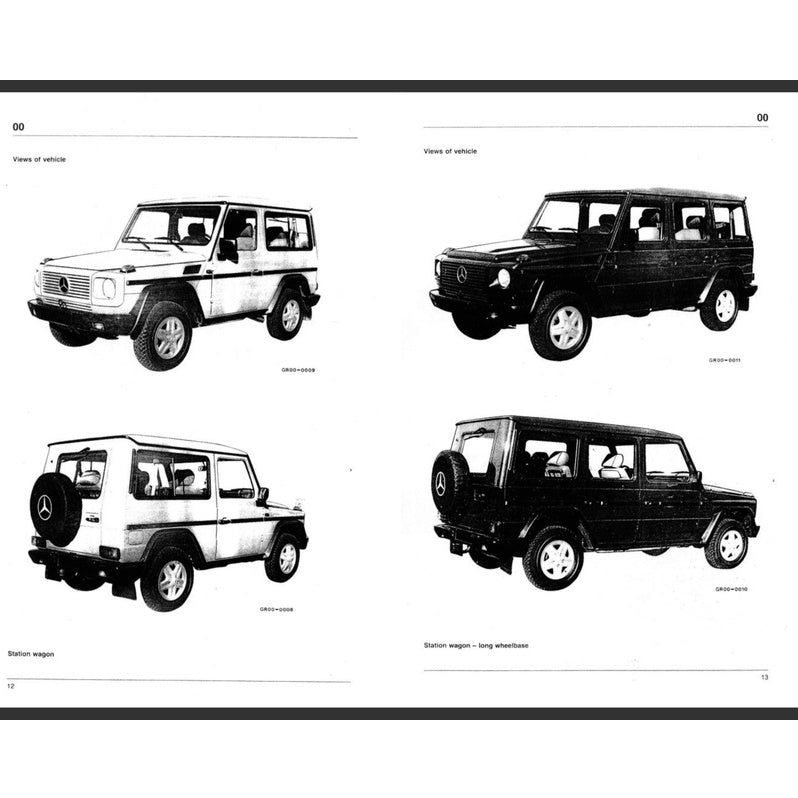

MERCEDES BENZ G-CLASS W463 (1990-2018) SERVICE WORKSHOP MANUAL IN PDF (460 PAGES) AVAILABLE AS DOWNLOADABLE LINK.

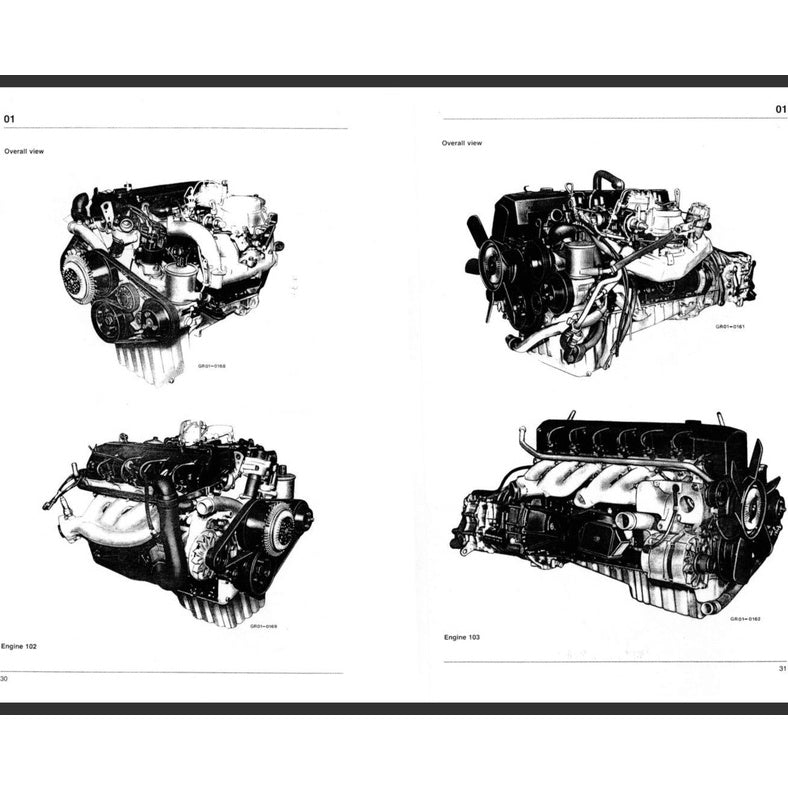

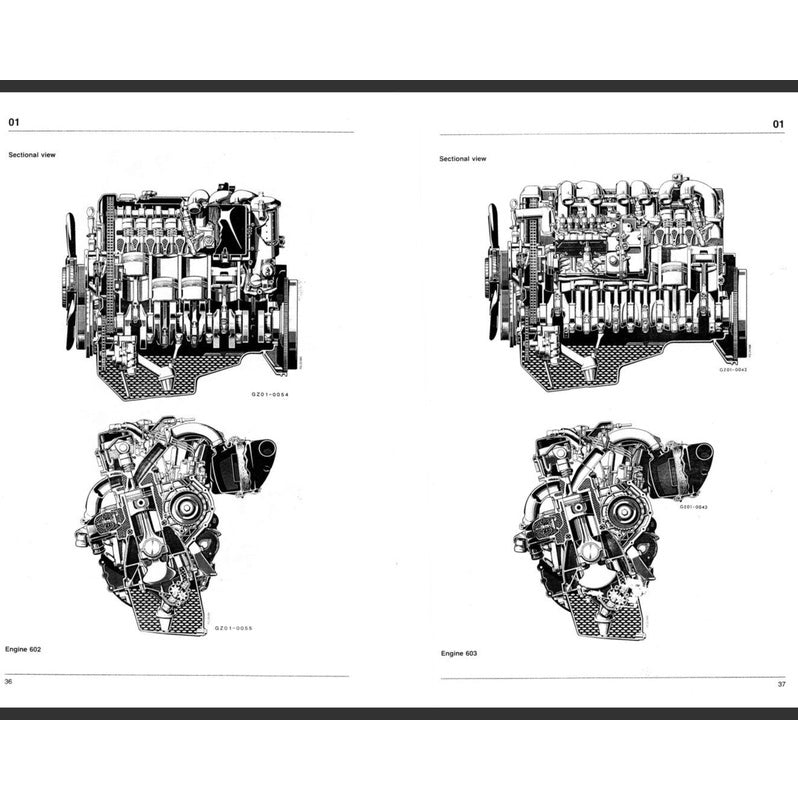

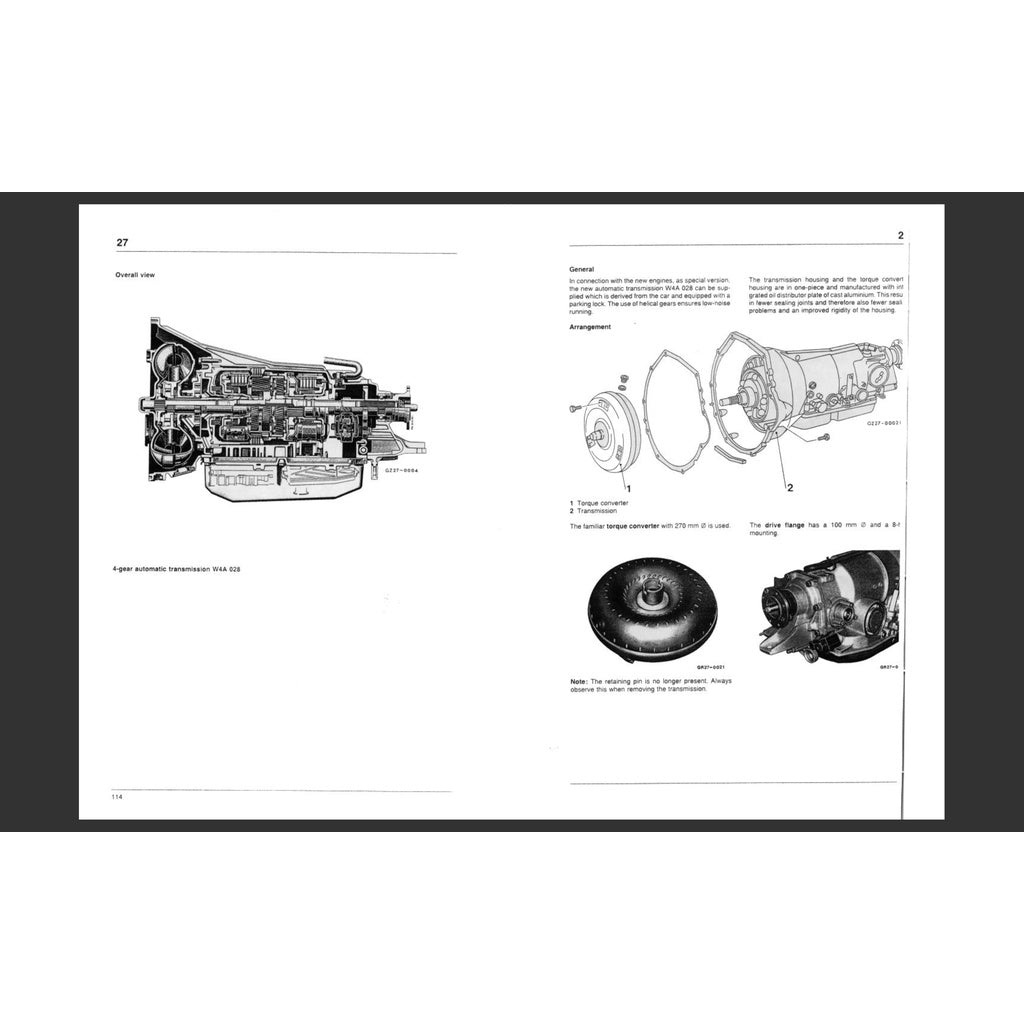

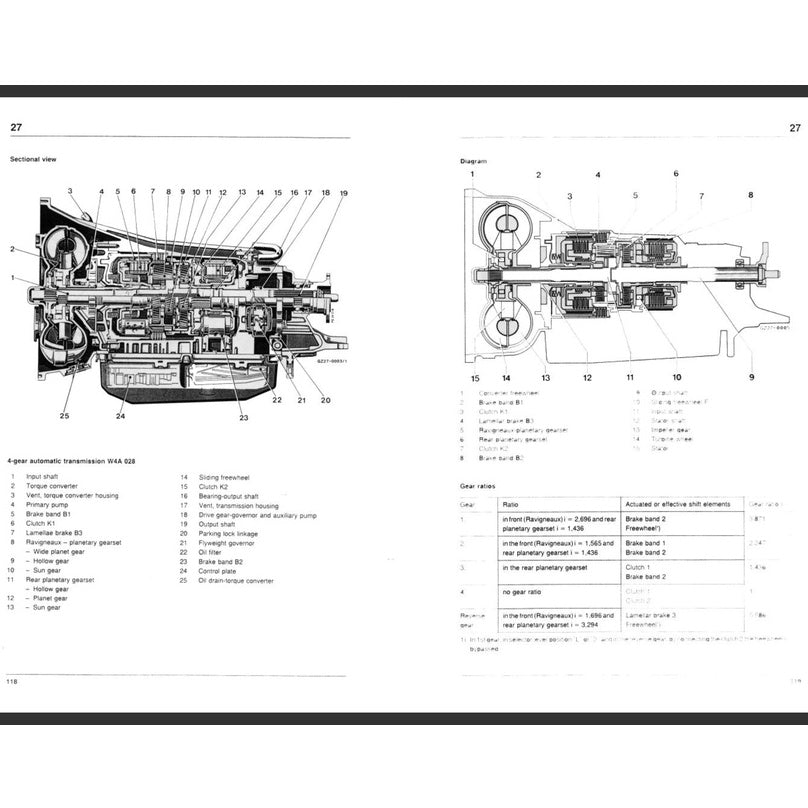

This is another gem of a manual. In 460 pages it captures the essentials of the G-wagen and leaves out the non-essential making this manual totally accessible DiY and professional mechanics alike for key maintenance service and repair operations. The focus is on the most popular gasoline engine M102 & M103 and most popular Diesel engine OM 602 & OM603, yet it does refer to all other engines of the series. Large place is left to automatic transmission which is often left out in many MB manuals.
POWERTRAIN
Engine 2.0L M 102.965 E 20 KAT I4
2.3L M 102.989 E 23 KAT I4
3.0L M 103.987 E 30 KAT I6
3.2L M 104.996 E 32 I6
3.2L M 112.945 E 32 V6
3.6L M 104.992 E 36 I6
4.0L M 176 DE 40 AL twin-turbo V8
5.0L M 117.965 E 50 V8
5.0L M 113.965 E 50 V8
5.4L M 113 E 55 V8
5.4L M 113 E 55 ML supercharged V8
5.5L M 273 KE 55 V8
5.5L M 157 DE 55 twin-turbo V8
6.0L M 117.965 E 50 bored to 6.0 litres[14] V8
6.0L M 279 E 60 AL twin-turbo V12
6.3L M 137 E 63 V12
2.5L OM 602.931 D 25 I5 Diesel
2.7L OM 612.965 DE 27 LA turbo I5 Diesel
3.0L OM 603.931 D 30 I6 Diesel
3.0L OM 606.964 D 30 LA turbo I6 Diesel
3.0L OM 642 DE 30 LA V6 turbo Diesel
3.5L OM 603.972 D 35 A turbo I6 Diesel
4.0 OM 628.962 DE 40 LA biturbo V8 Diesel
Transmission
5-speed manual
4-speed 4G-Tronic automatic
5-speed 5G-Tronic automatic
7-speed 7G-Tronic automatic
