NISSAN NAVARA / FRONTIER D22 (1997-2004-2014) SERVICE WORKSHOP MANUAL IN PDF FORMAT (
1696 PAGES
) SUPPLIED AS DOWNLOADABLE LINK.
This is the same service manual your local NISSAN dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. All pages are printable, so run off what you need and take it with you into the garage or workshop.
ENGINE FEATURED IN THIS MANUAL: KA24E/KA24DE I4 & YD25DDTi I4
POWERTRAIN
Engine
Petrol:
1,998 cc (2.0 L; 121.9 cu in) NA20S I4
1,998 cc (2.0 L; 121.9 cu in) KA20DE I4
2,388 cc (2.4 L; 145.7 cu in) KA24E/KA24DE I4
2,960 cc (3.0 L; 180.6 cu in) VG30E V6
3,275 cc (3.3 L; 199.9 cu in) VG33E V6
3,275 cc (3.3 L; 199.9 cu in) VG33ER supercharged V6
Diesel:
2,488 cc (2.5 L; 151.8 cu in) TD25 I4
2,488 cc (2.5 L; 151.8 cu in) YD25DDTi turbodiesel I4
2,663 cc (2.7 L; 162.5 cu in) TD27 I4
2,799 cc (2.8 L; 170.8 cu in) MWM Sprint I4
2,953 cc (3.0 L; 180.2 cu in) ZD30DDT turbodiesel I4
3,153 cc (3.2 L; 192.4 cu in) QD323 I4
Transmission
4-speed manual
5-speed manual

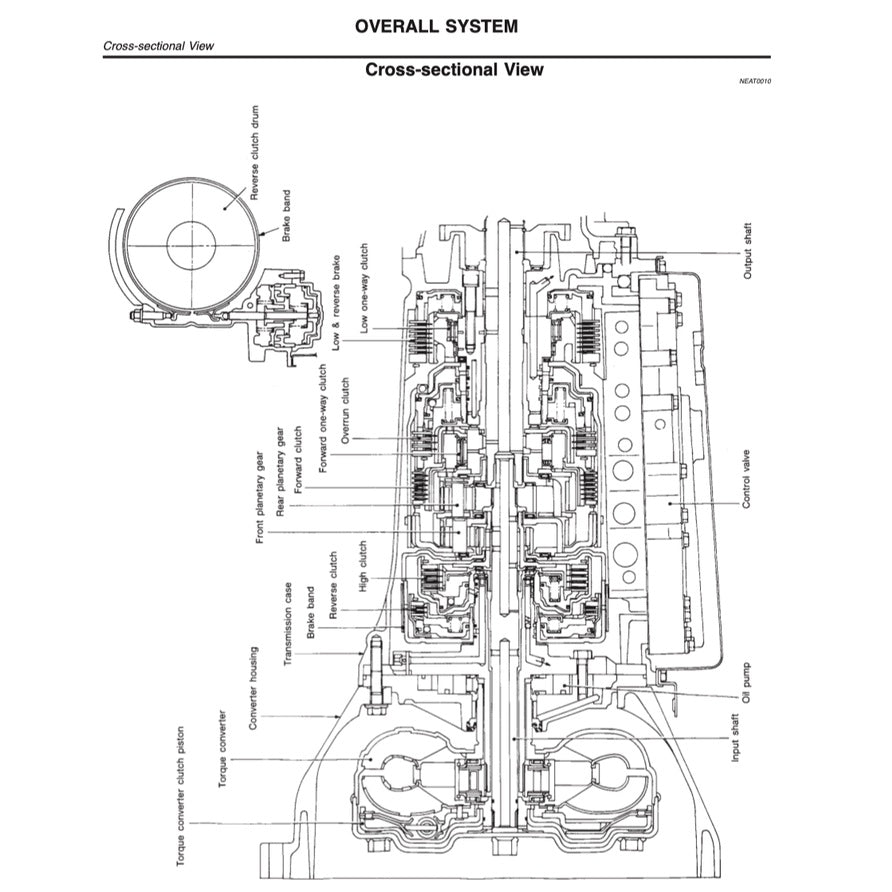

4-speed RL4R01A automatic
4-speed RE4R01A automatic
