PERODUA ARUZ F850 (2019-2023) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (2300 PAGES) SUPPLIED AS DOWNLOADABLE LINK.
THIS IS THE COMPLETE WORKSHOP MANUAL FOR THE PERODUA ARUZ WHICH INCLUDES 1.5L ENGINE 2NR-VE; AUTOMATIC TRANSMISSION, BODY/CHASSIS AND WIRING DIAGRAM. THE MANUAL FEATURES HUNDREDS OF TUTORIAL PICTURES, EXPLODED DIAGRAMS. TORQUE SETTING, ETC...

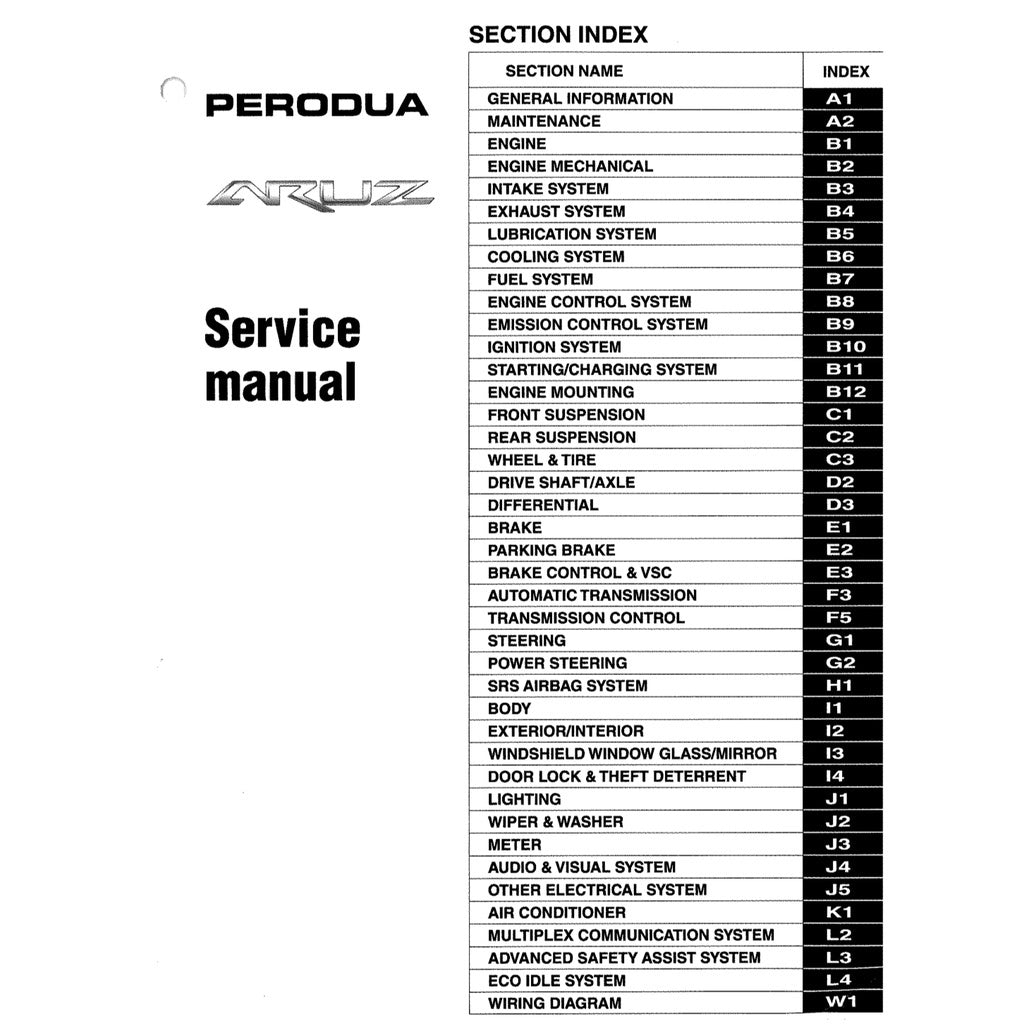

CONTENTS:
- GENERAL INFORMATIONS/SPECIFICATIONS/SERVICE/MAINTENANCE

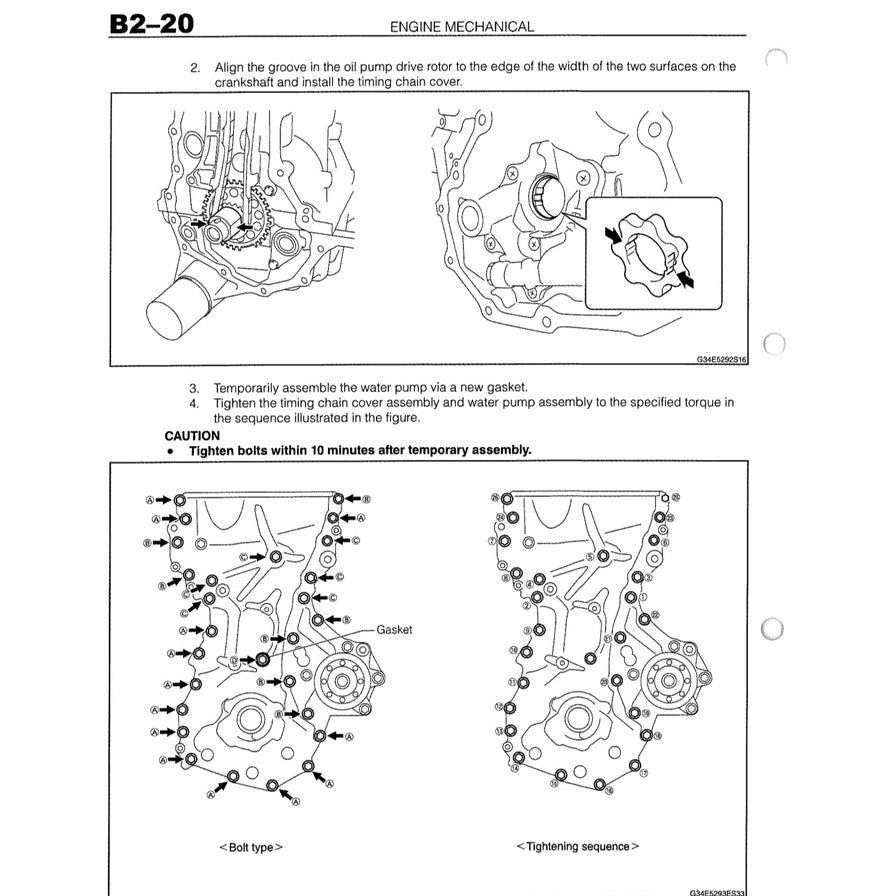

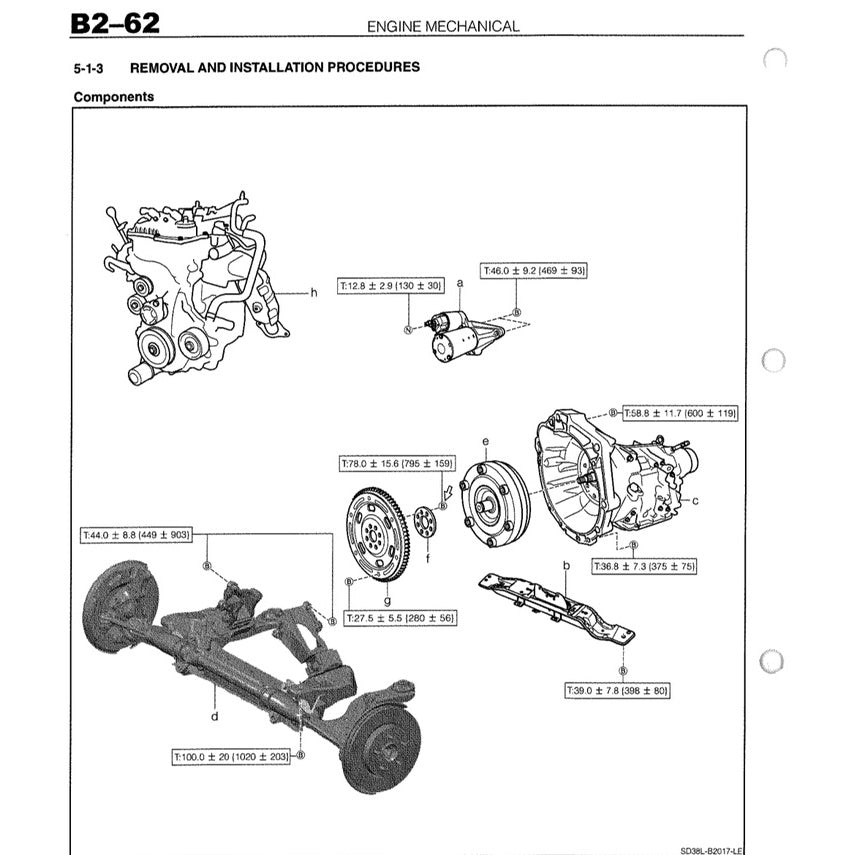

- ENGINE, ENGINE SYSTEMS AND CONTROLS (2NR)

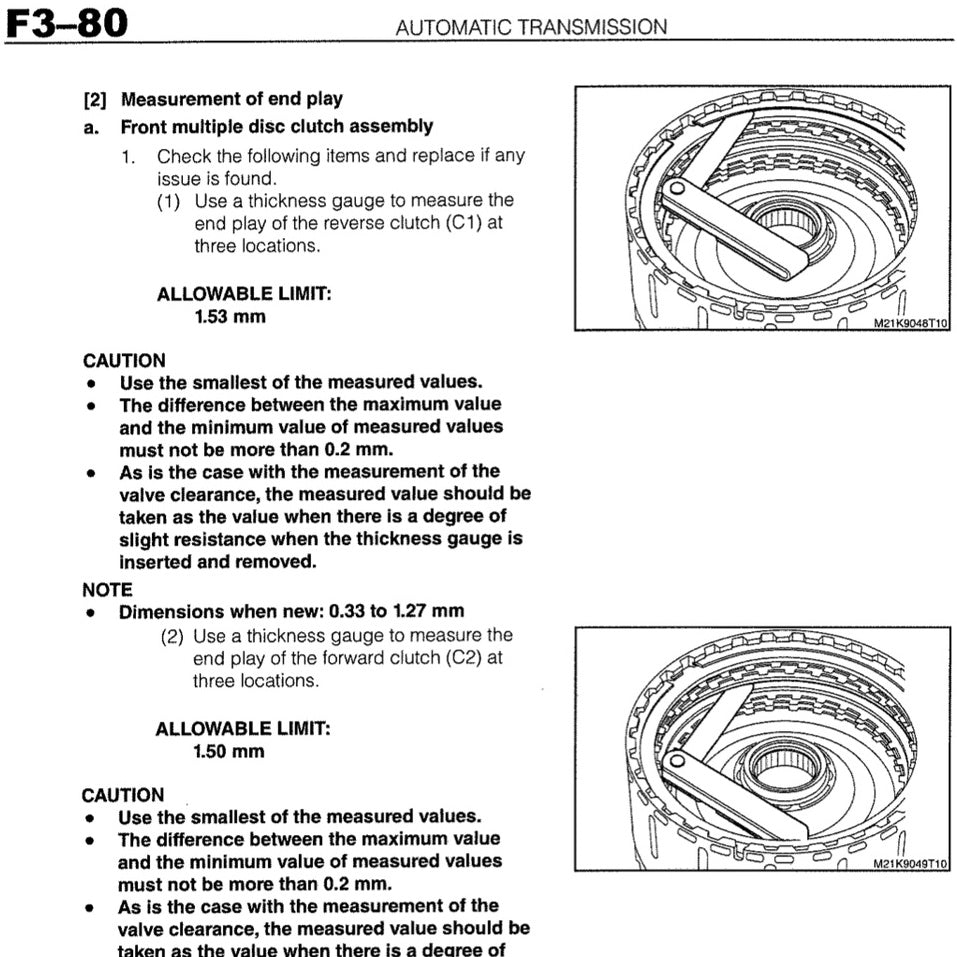

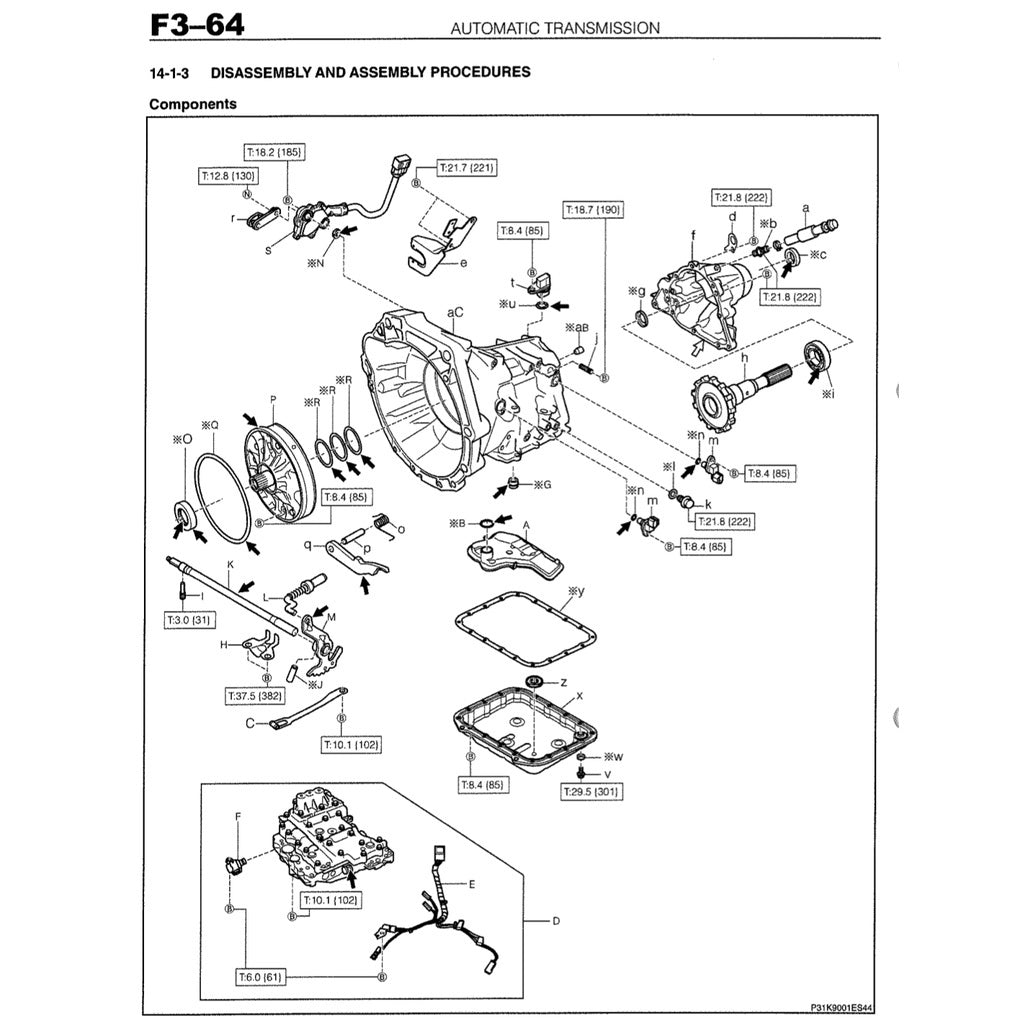

- TRANSMISSION & TRANSAXLES: AUTOMATIC TRANSMISSION AND CONTROLS
- RUNNING GEARS INCLUDING SUSPENSION & STEERING, BRAKE, ABS, WHEELS & TYRES
- BODYWORK
- HVAC

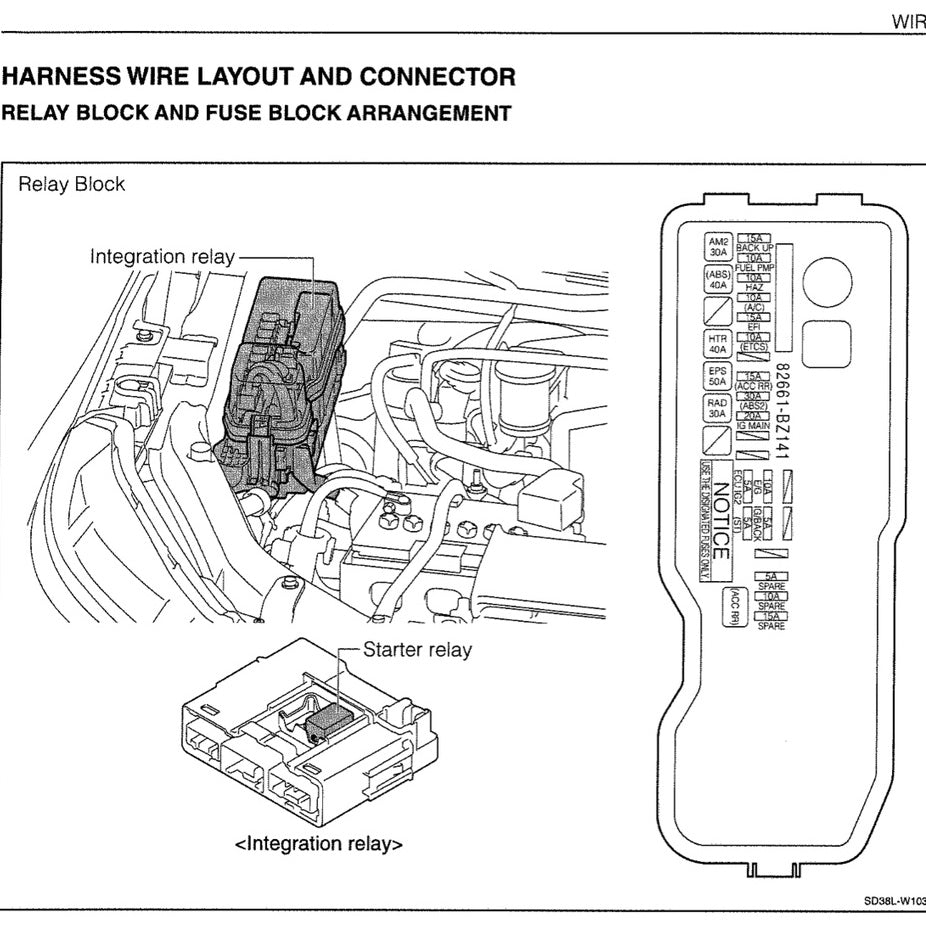

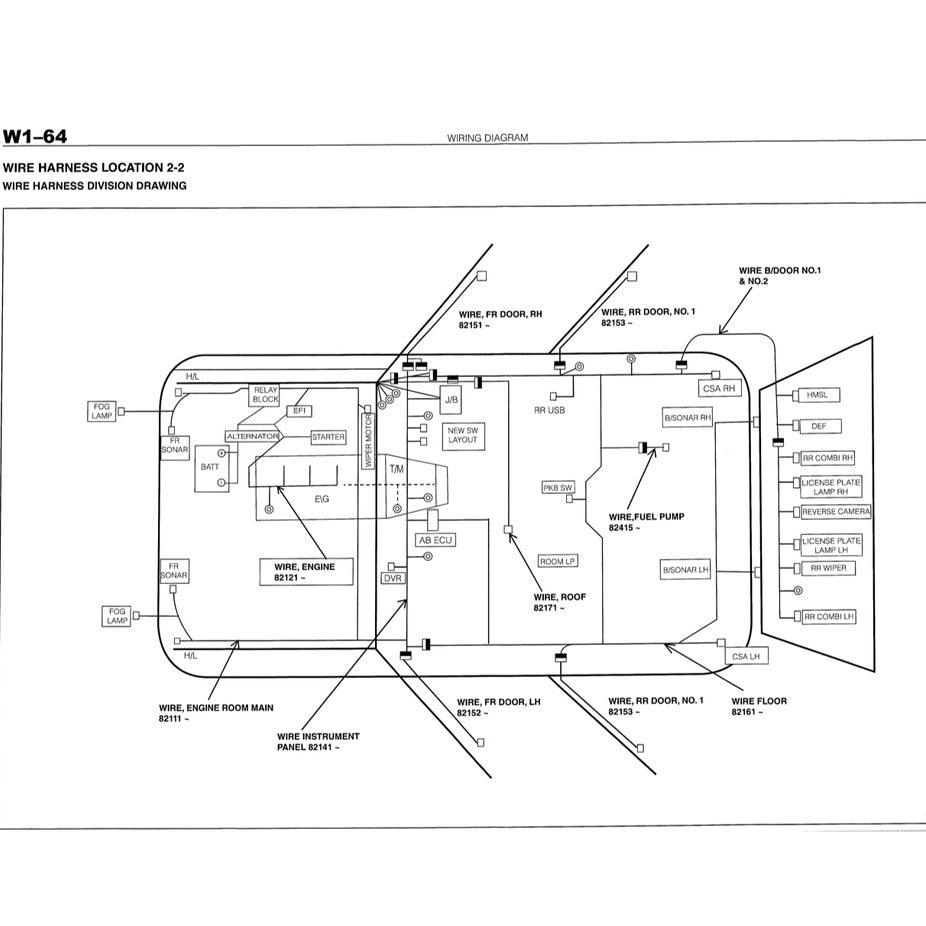

- BODY ELECTRICAL WIRING DIAGRAMS INCLUDING SYSTEMS DIAGRAMS, WIRING HARNESS OUTLAY AND CONNECTORS IDENTIFICATION
POWERTRAIN
Engine Petrol: 1.5 L 2NR-VE I4
Transmission
5-speed manual
4-speed automatic
