TOYOTA COROLLA ALTIS E120/130 (2002-2008) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (
2298 PAGES
) AVAILABLE AS DOWNLOADABLE LINK.

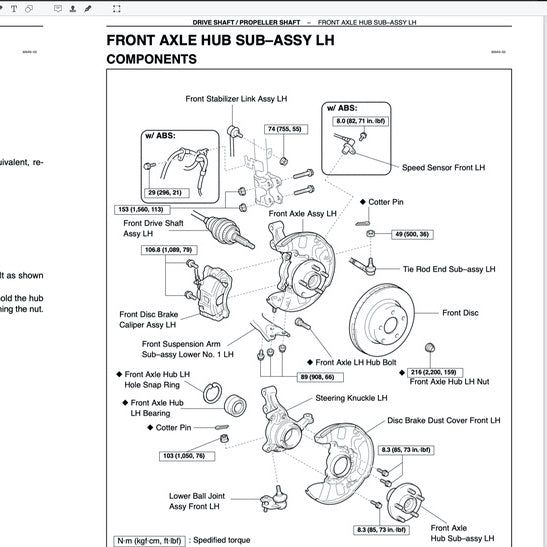

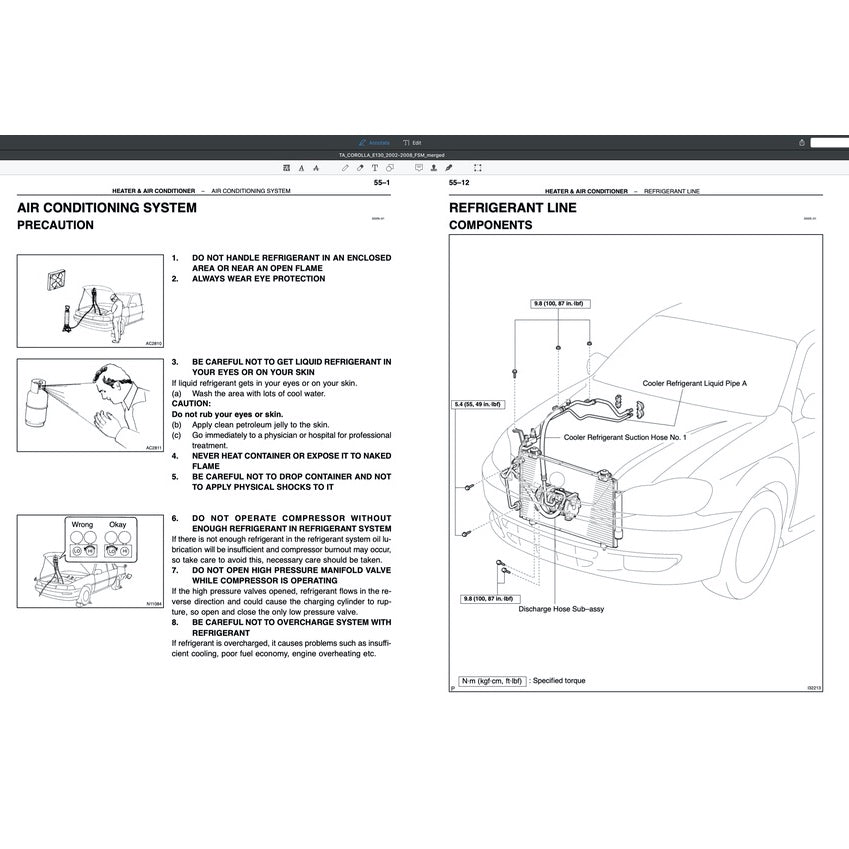

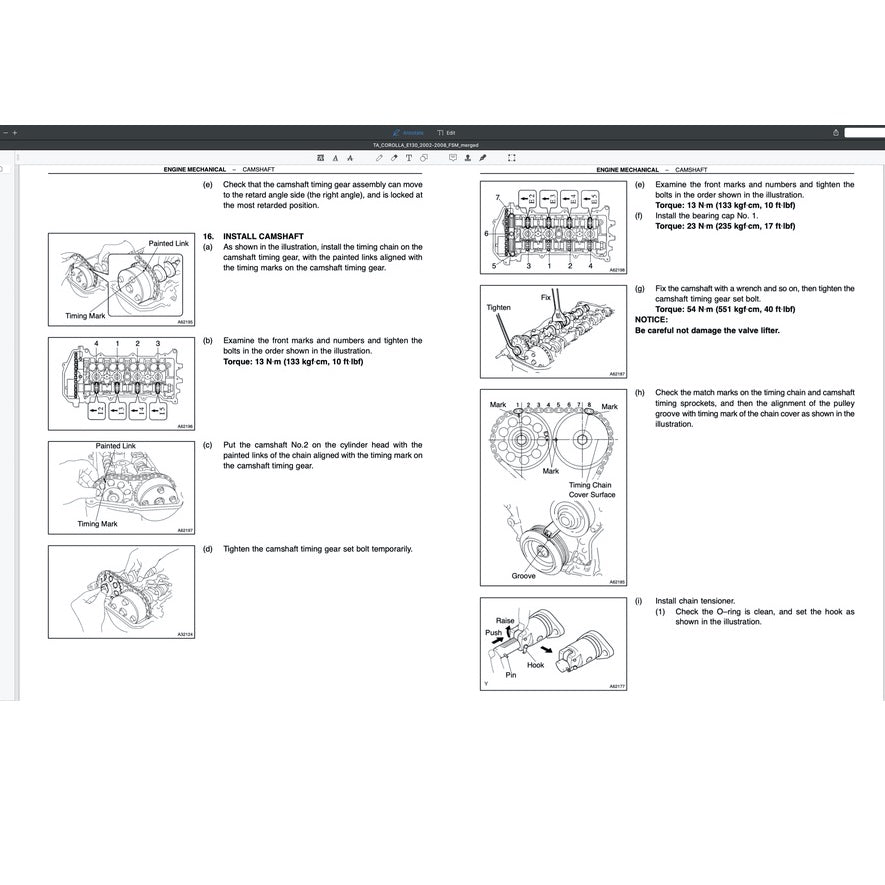

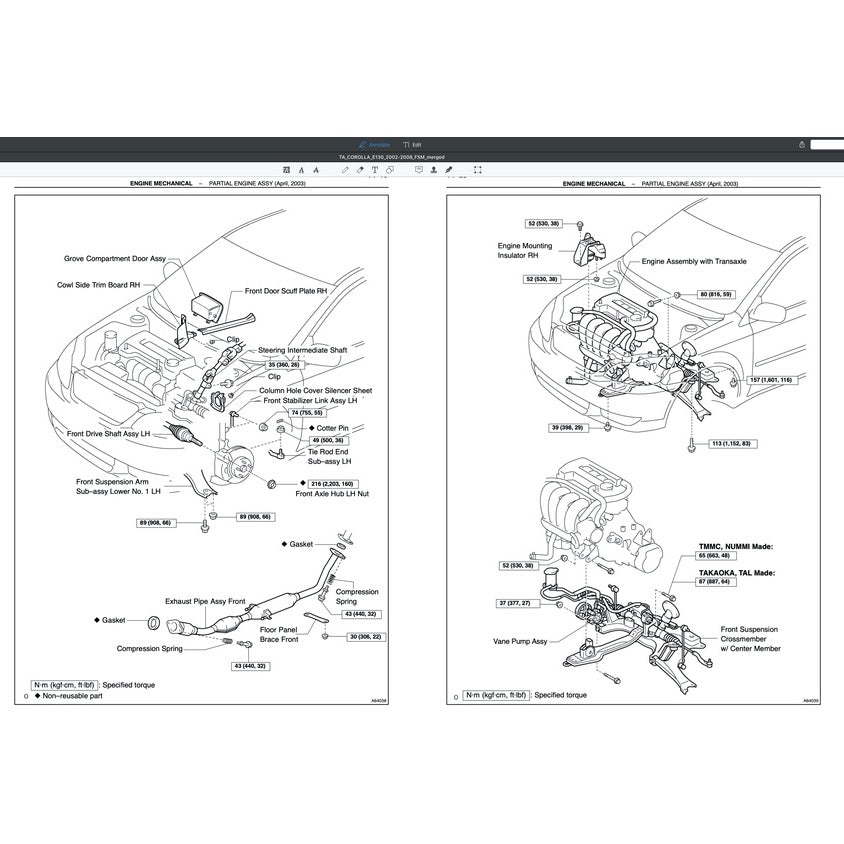

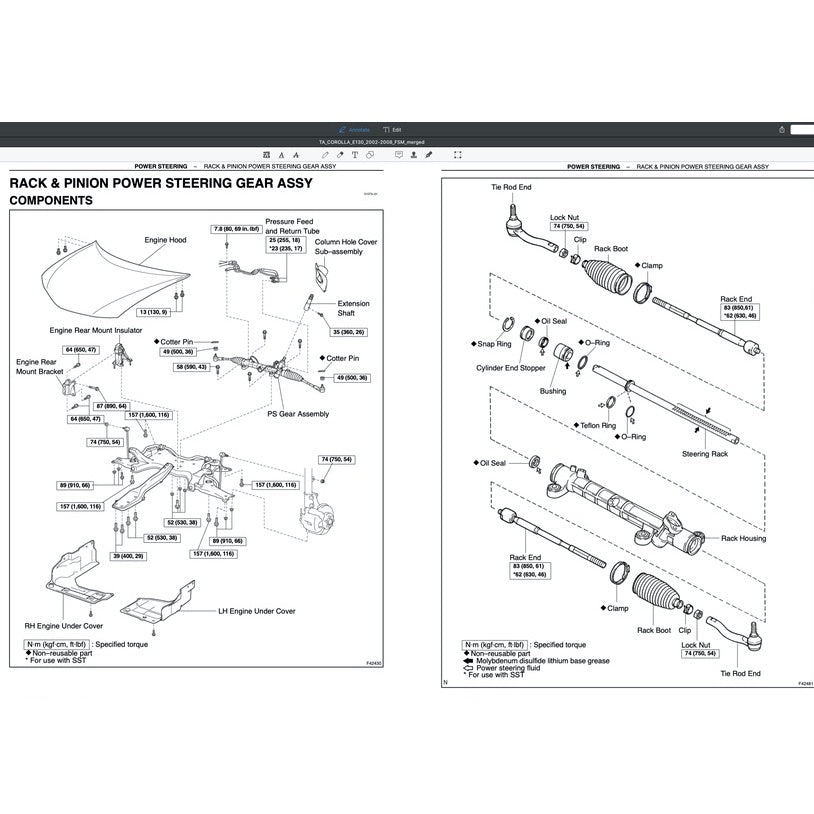

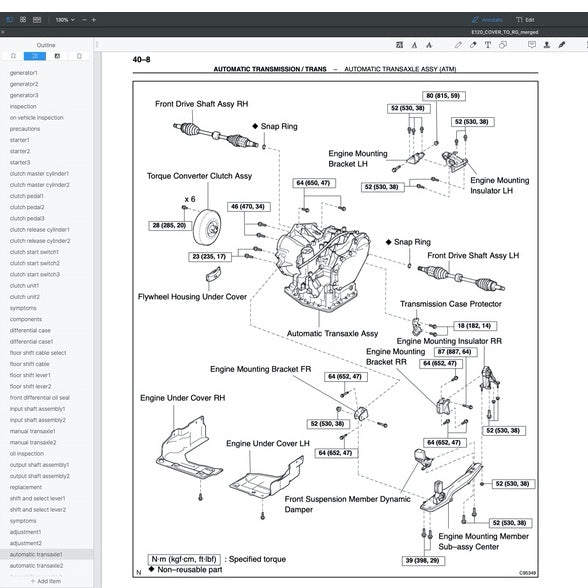

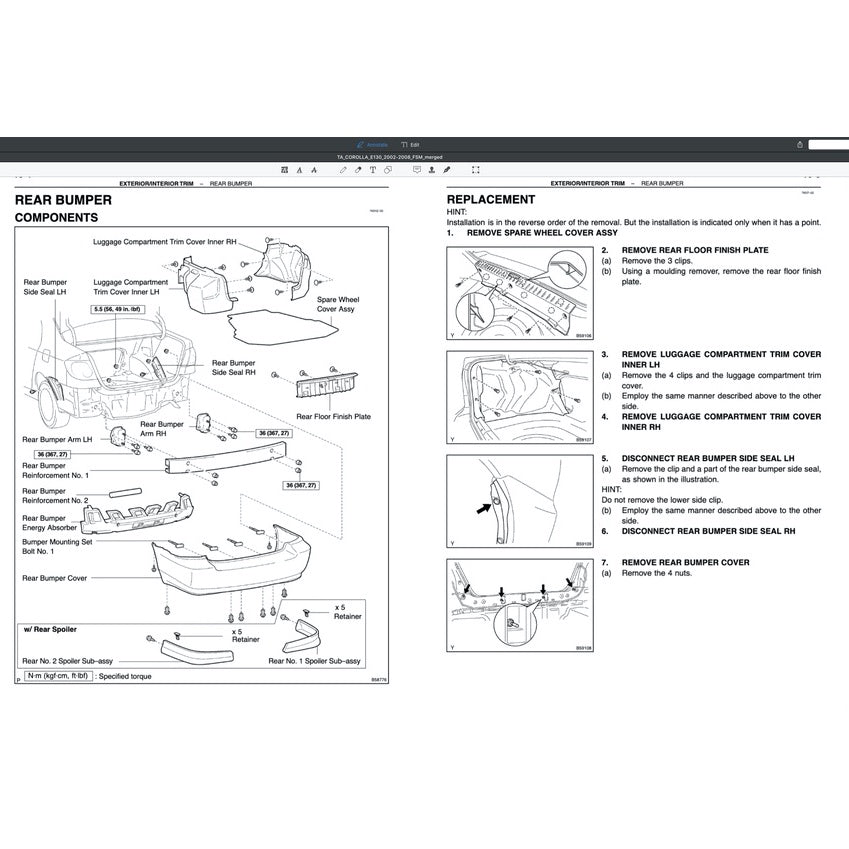

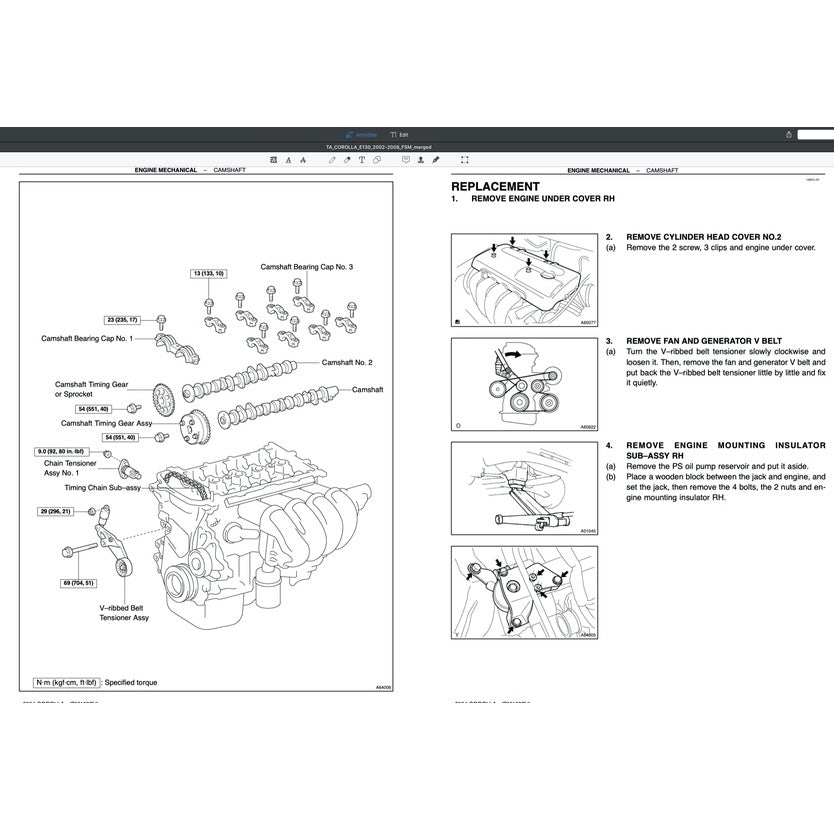

This is the same service manual your local TOYOTA dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. Pages are printable, so run off what you need and take it with you into the garage or workshop.
ENGINE COVERED IN THIS MANUAL: 1.8L 1ZZ-FE
POWERTRAIN
Engine
Petrol:
1.3 L 2NZ-FE I4
1.4 L 4ZZ-FE I4
1.5 L 1NZ-FE I4
1.6 L 1ZR-FE I4
1.6 L 3ZZ-FE I4
1.8 L 1ZZ-FE I4
1.8 L 2ZZ-GE I4
1.8 L 2ZZ-GE s/c I4 (Europe)
Diesel:
1.4 L 1ND-TV D-4D turbo I4
2.0 L 1CD-FTV D-4D turbo I4
2.0 L 2C I4 (Asia)
2.2 L 3C-E I4 (Japan)[7]
Transmission
4-speed U340E automatic (Japan)
4-speed A245E automatic
4-speed A246E automatic (Europe)
5-speed manual
5-speed Multimode Manual Transmission
6-speed manual
