TOYOTA RUSH F800 (2017-2023) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (2300 PAGES) VIEWING .

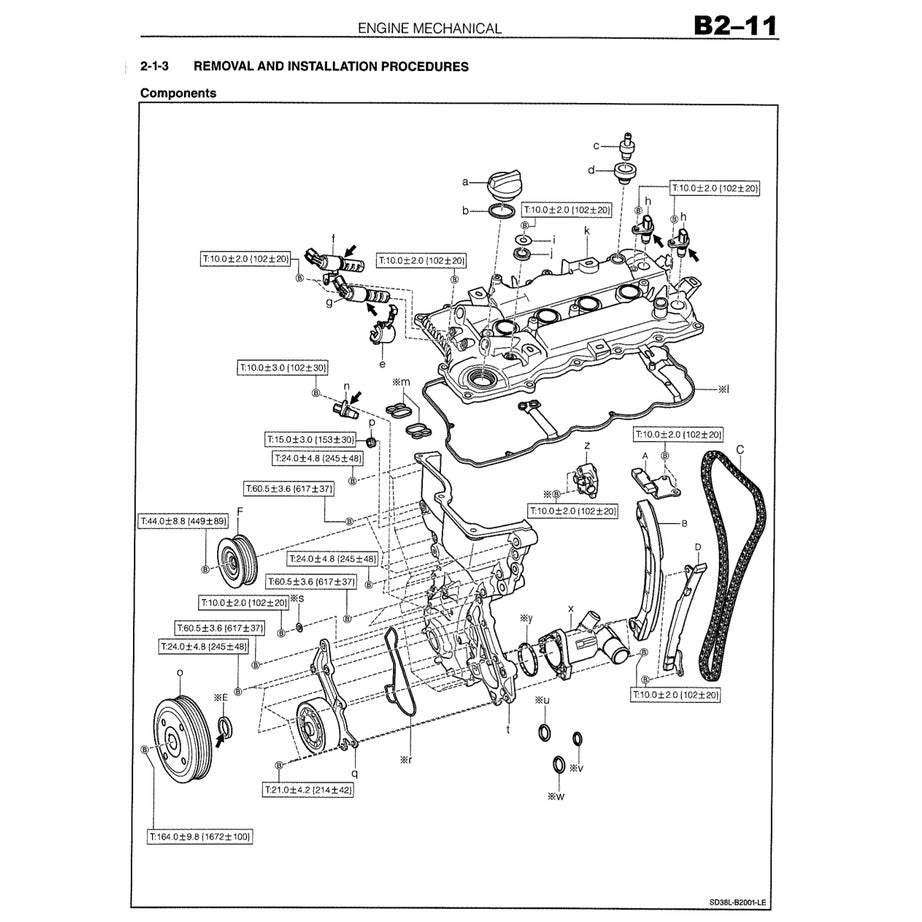

THIS IS THE COMPLETE WORKSHOP MANUAL FOR TOYOTA RUSH F800 WHICH INCLUDES 1.5L ENGINE 2NR-VE; AUTOMATIC TRANSMISSION, BODY/CHASSIS AND WIRING DIAGRAM. THE MANUAL FEATURES HUNDREDS OF TUTORIAL PICTURES, EXPLODED DIAGRAMS. TORQUE SETTING, ETC...
POWERTRAIN
Engine
Petrol:
1.5 L 2NR-VE I4
Transmission
5-speed manual
4-speed automatic

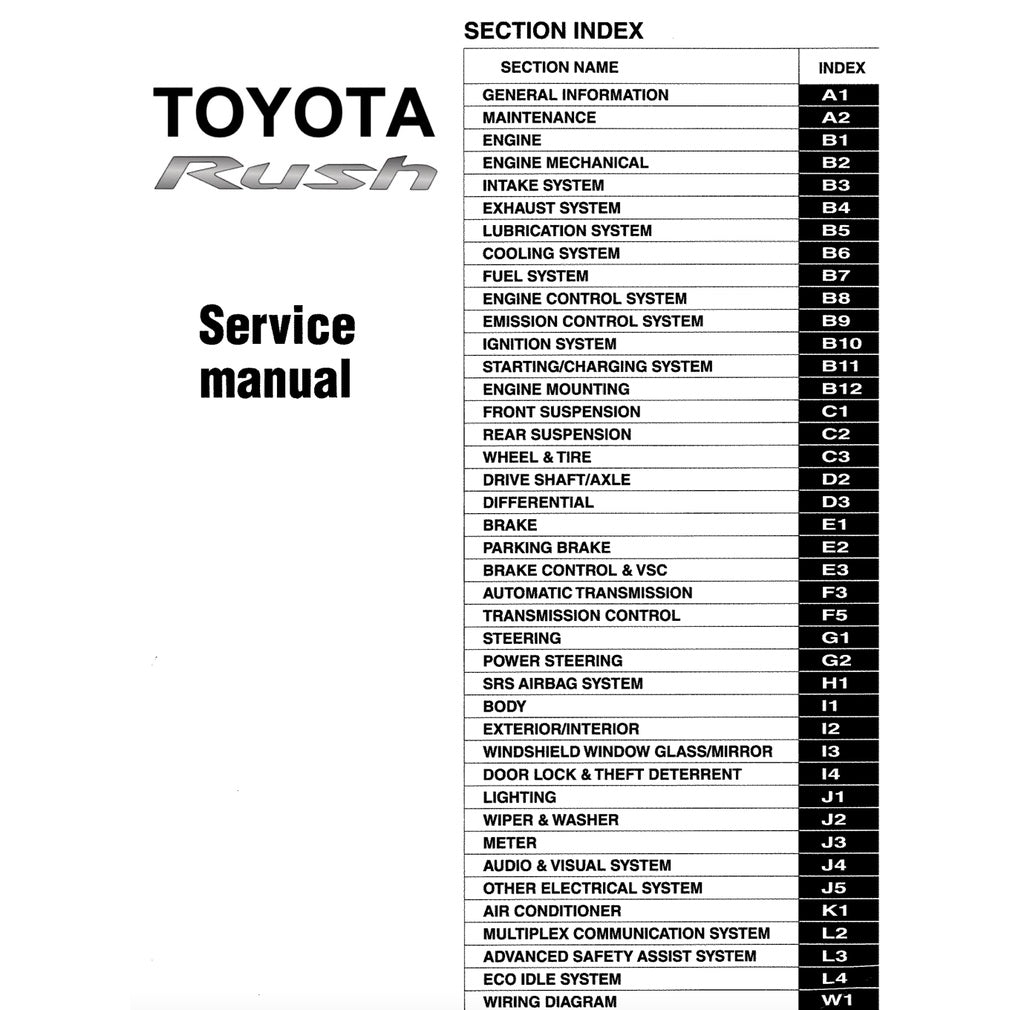

CONTENTS (SEE TABLE OF CONTENTS)

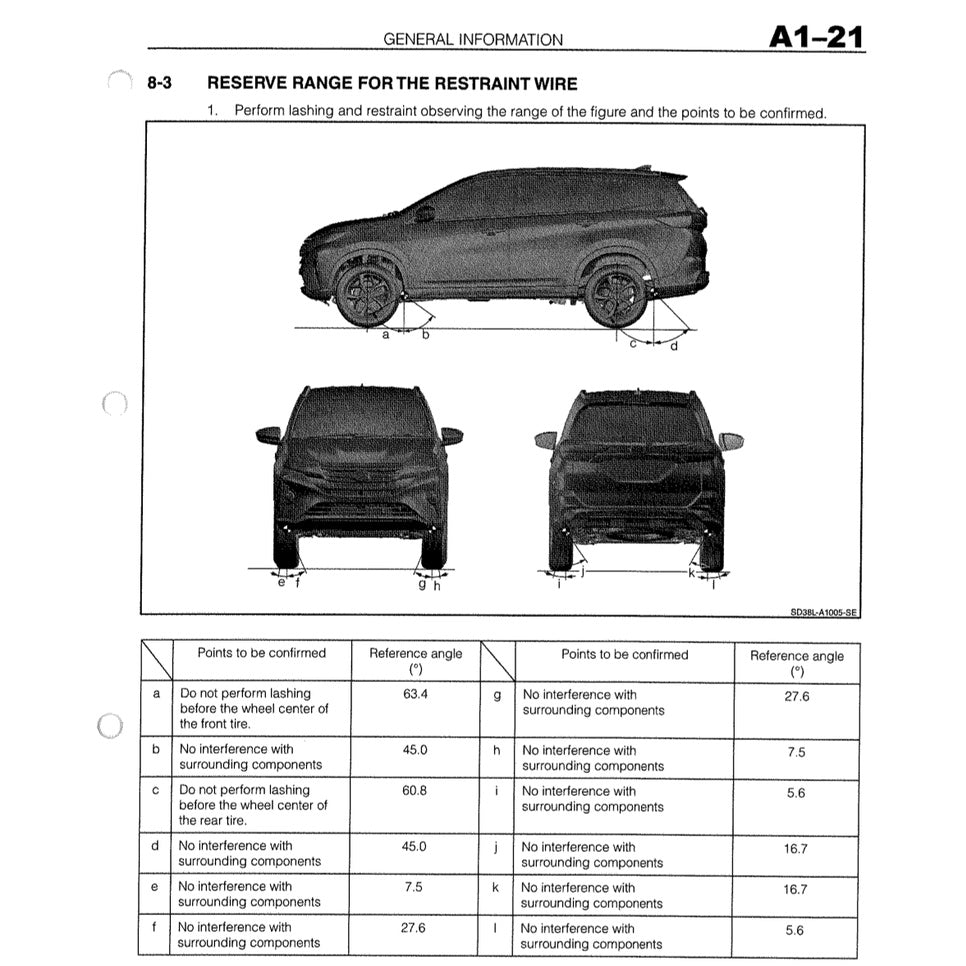

- GENERAL INFORMATIONS/SPECIFICATIONS/SERVICE/MAINTENANCE

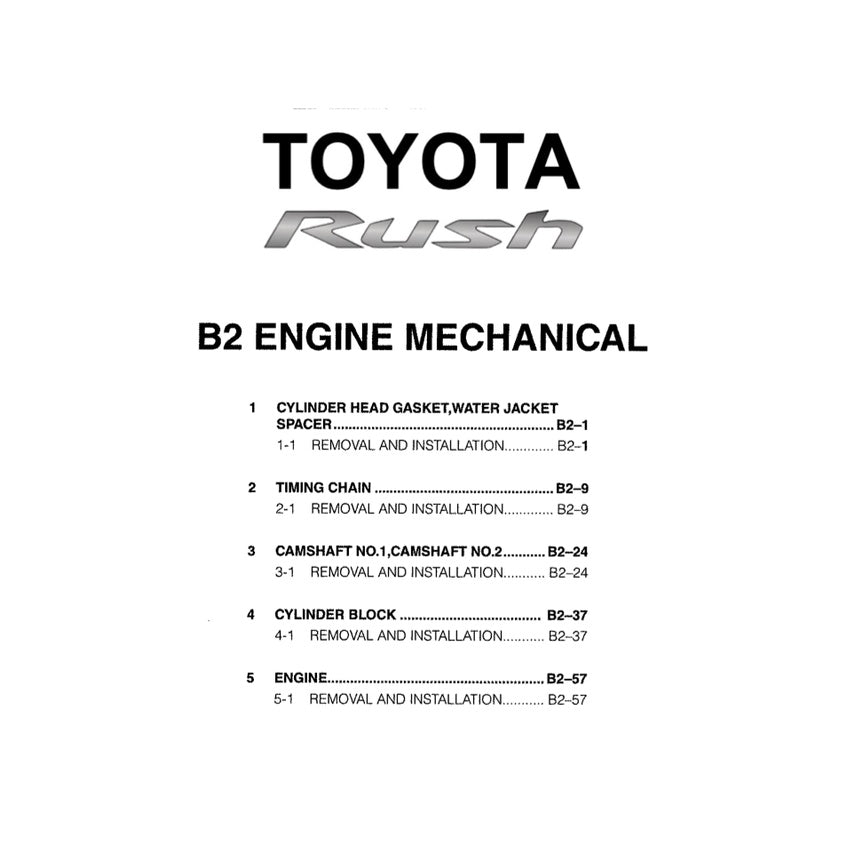

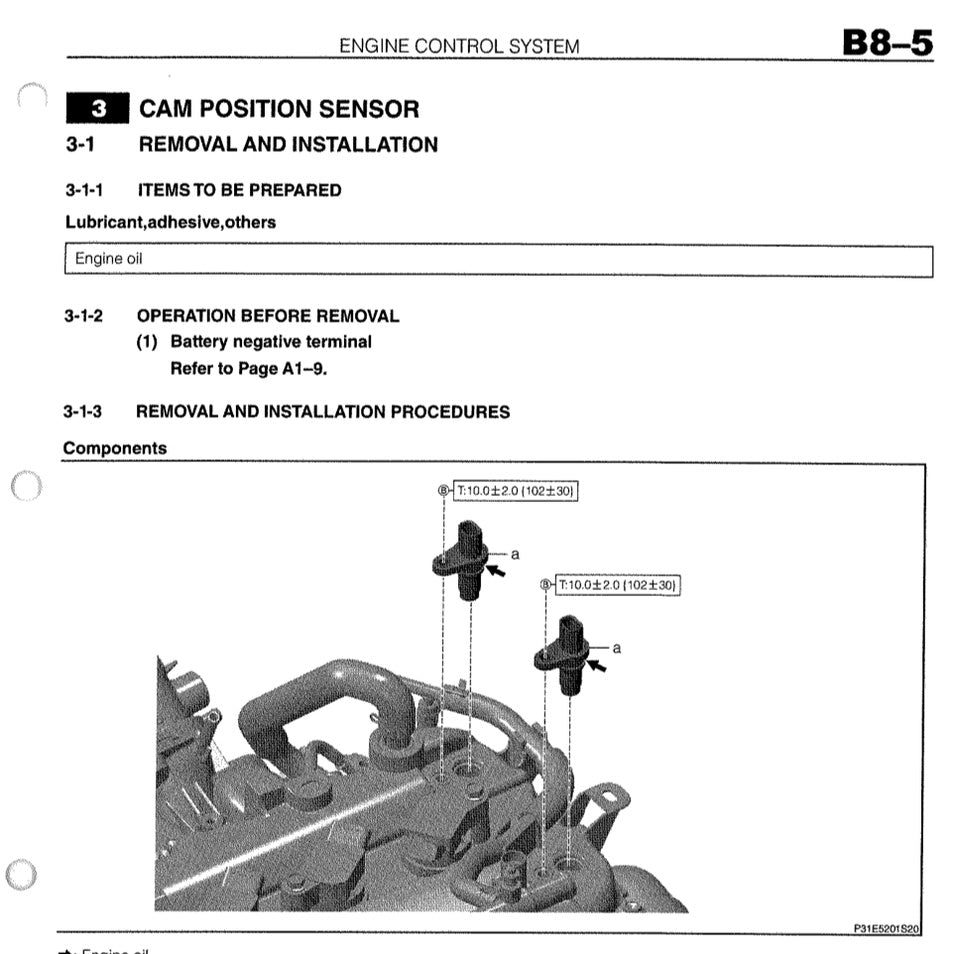

- ENGINE, ENGINE SYSTEMS AND CONTROLS (2NR)

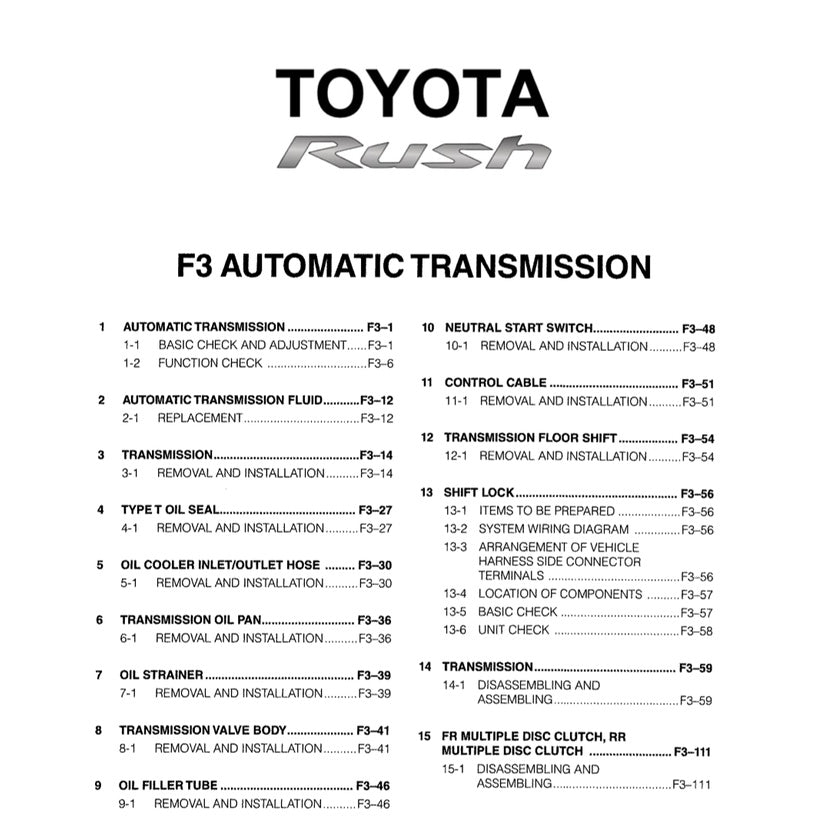

- TRANSMISSION & TRANSAXLES: AUTOMATIC TRANSMISSION AND CONTROLS
- RUNNING GEARS INCLUDING SUSPENSION & STEERING, BRAKE, ABS, WHEELS & TYRES
- BODYWORK

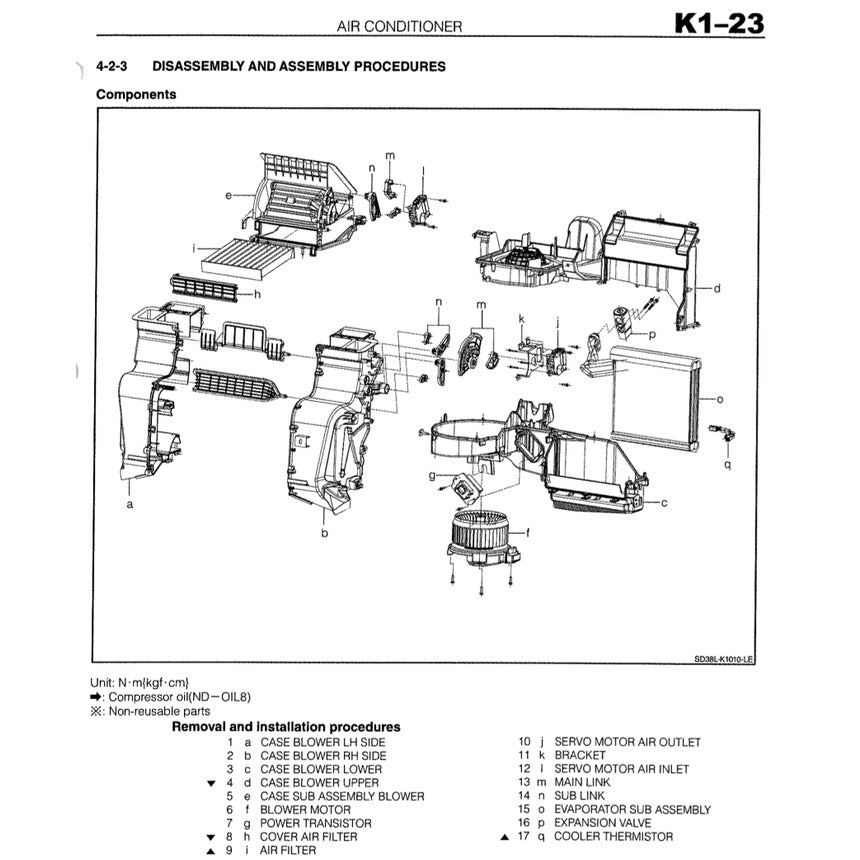

- HVAC

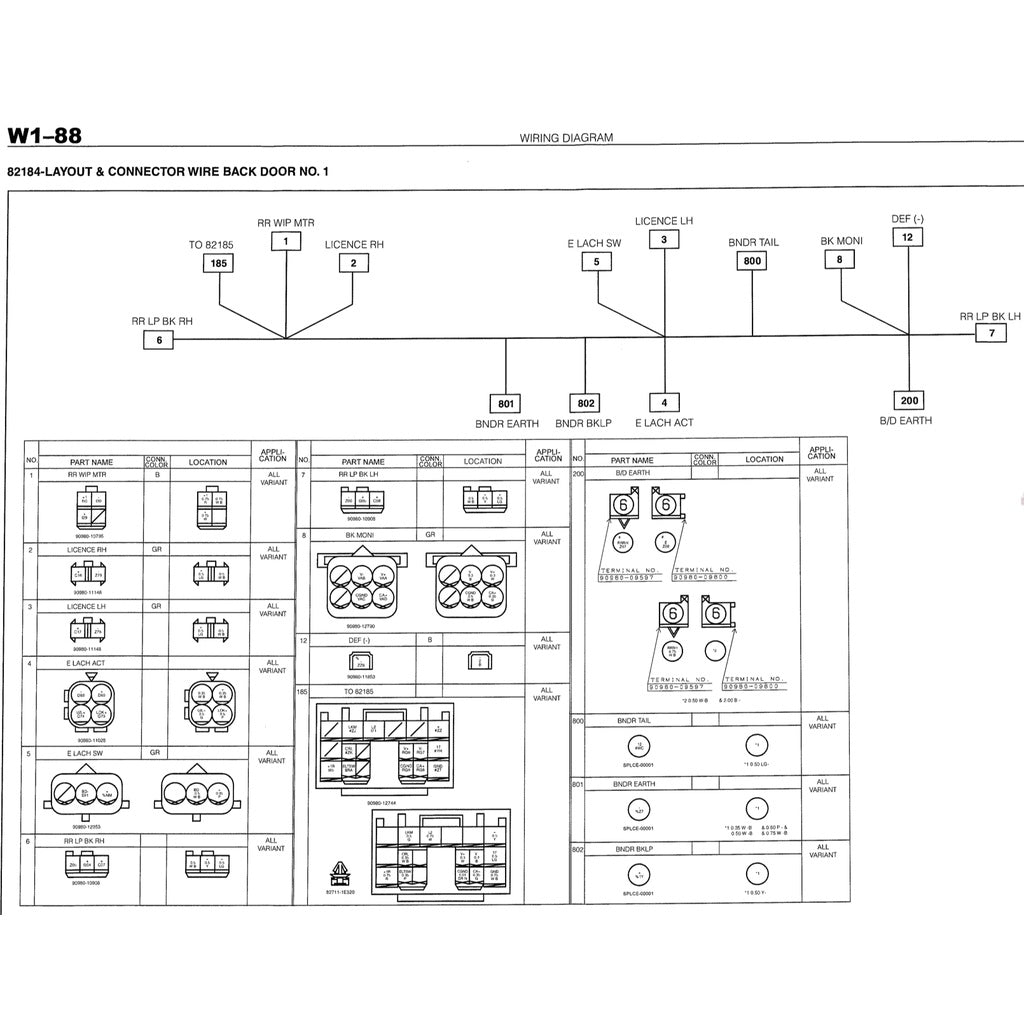

- BODY ELECTRICAL WIRING DIAGRAMS INCLUDING SYSTEMS DIAGRAMS, WIRING HARNESS OUTLAY AND CONNECTORS IDENTIFICATION
