VW POLO MK4 9N (2001-2009) SERVICE WORKSHOP MANUAL IN PDF FORMAT (6403 PAGES) AVAILABLE AS DOWNLOADABLE LINK.
THIS IS THE VW FACTORY MANUAL ADAPTED BY TO THE ATTENTION OF SKILLED AND EXPERIENCED DYI AND BUSY WORKSHOP OPERATIVES. THE MANUAL FOCUS IS ON REPAIR/OVERHAUL AND WILL COVER THE MOST COMMON REPAIRS TO BE PERFORMED ON THE POLO MK4.

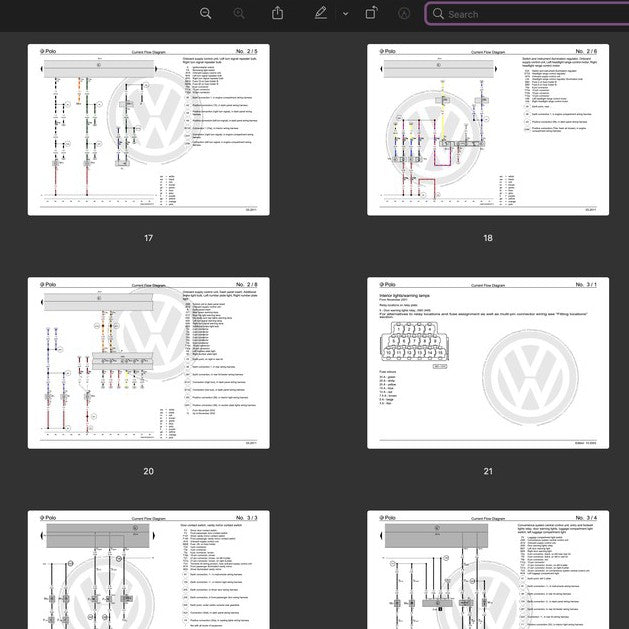

FULL WIRING AND CURRENT FLOW DIAGRAMS ARE ALSO INCLUDED.
Powertrain
Engine
1.2 L I3 (petrol)
1.4 L I4 (petrol)
1.6 L I4 (petrol)
1.8 L I4 (t/c petrol)
2.0 L I4 (petrol)
Transmission
5-speed manual
6-speed manual
4-speed automatic
6-speed automatic
WHAT'S INSIDE ?
Maintenance manual
3-cyl. injection engine (1.2l engine, 2 and 4V)
4-cyl. injection engine (toothed belt drive)

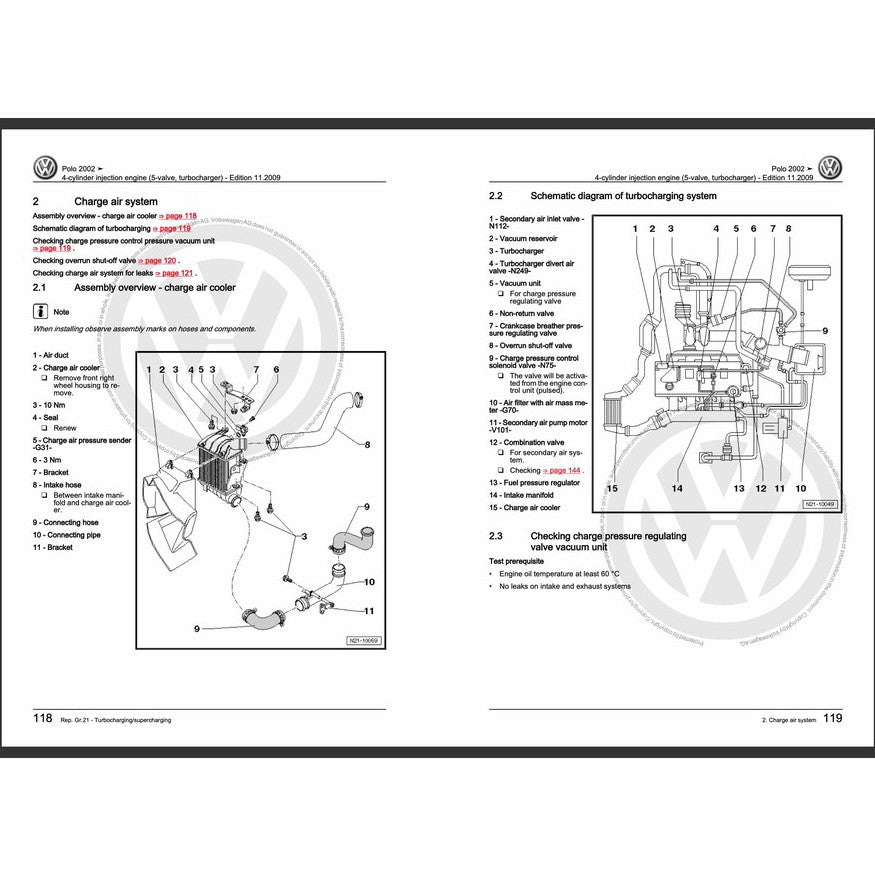

4-cyl. injection engine (5-valve, turbocharger)
4-cyl. injection engine (direct injection)
4-cyl. injection engine (5-valve, turbocharger)

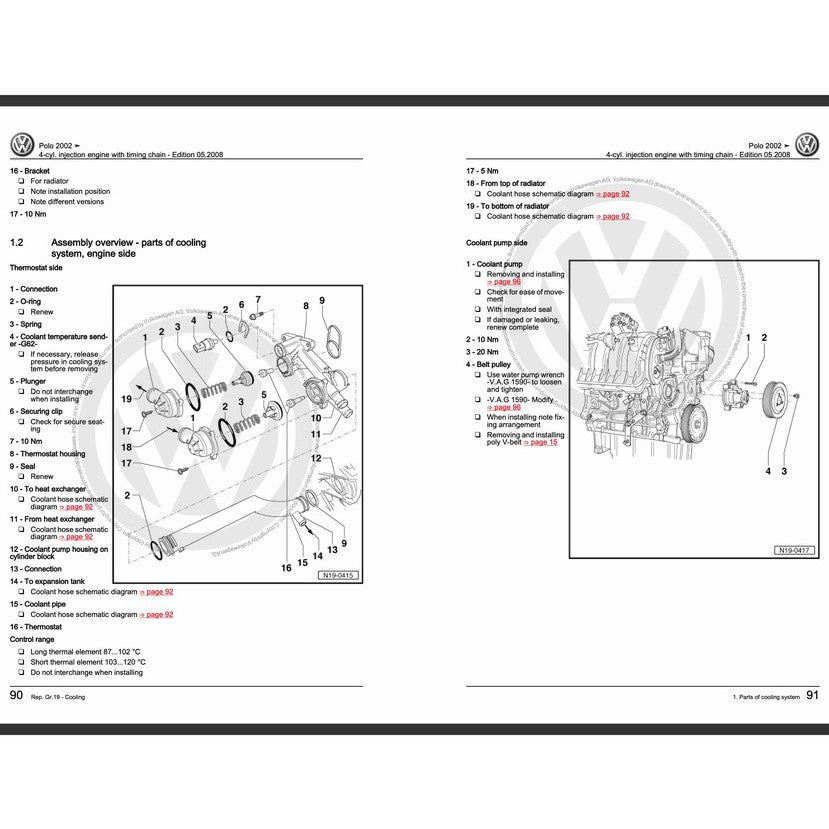

4-cyl. injection engine with timing chain BTS

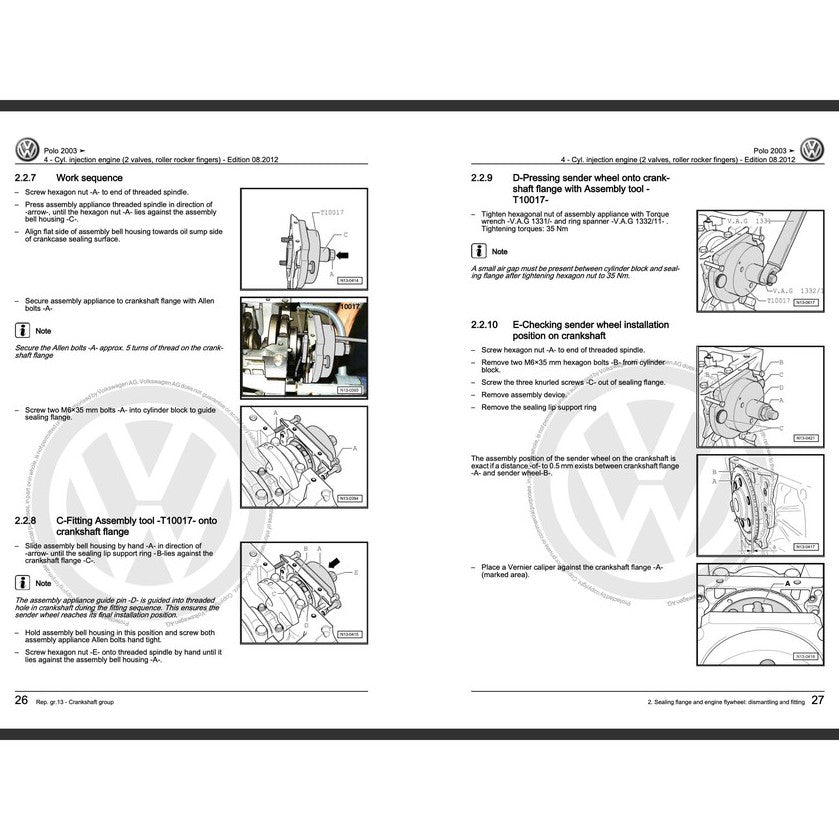

4-cyl. injection engine (2 valves, roller rocker fingers)
4-speed Automatic gearbox 001

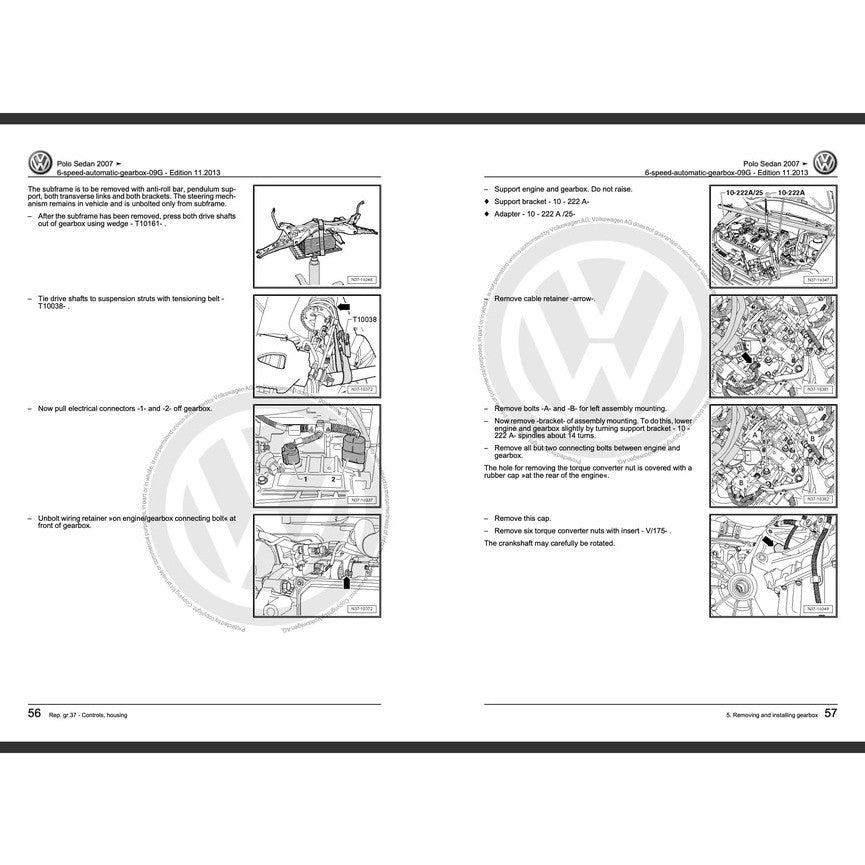

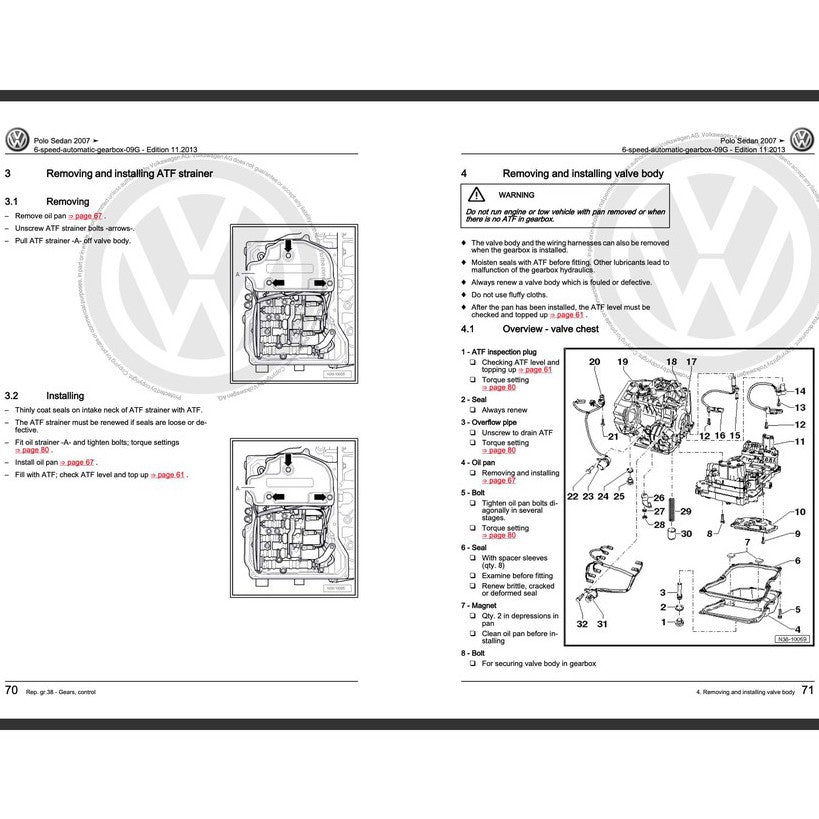

6-speed automatic gearbox 09G (Sedan & classic)
5-speed manual gearbox 02R
5-speed manual gearbox 02T
6-speed manual gearbox 0A8 (Sedan & classic)
Fault finding, Power transmission (Sedan & classic)
Brake systems ( Sedan & Classic)
Running gear, axles, steering (Sedan & classic)
Wheels and Tyres Guide
Heating, air conditioner (Sedan & Classic)
Communication

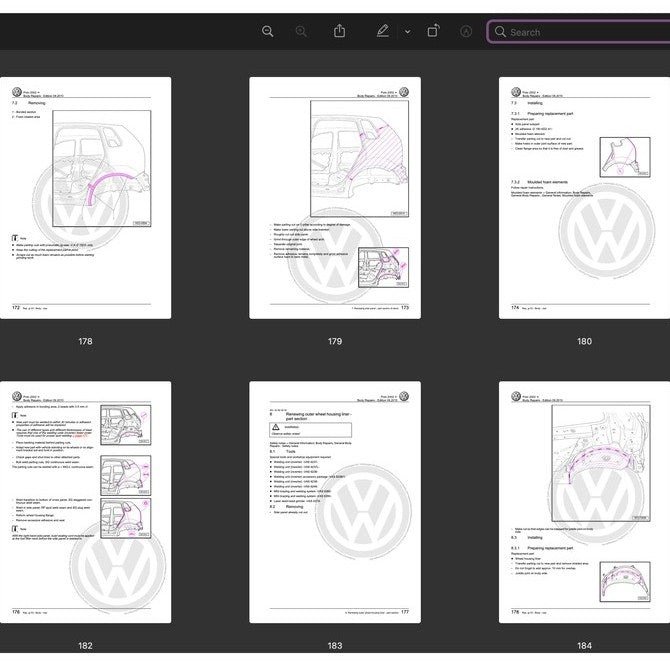

General Body Repairs
General body repairs; Exterior (Sedan & classic)
General body repairs, interior (Sedan & Classic)

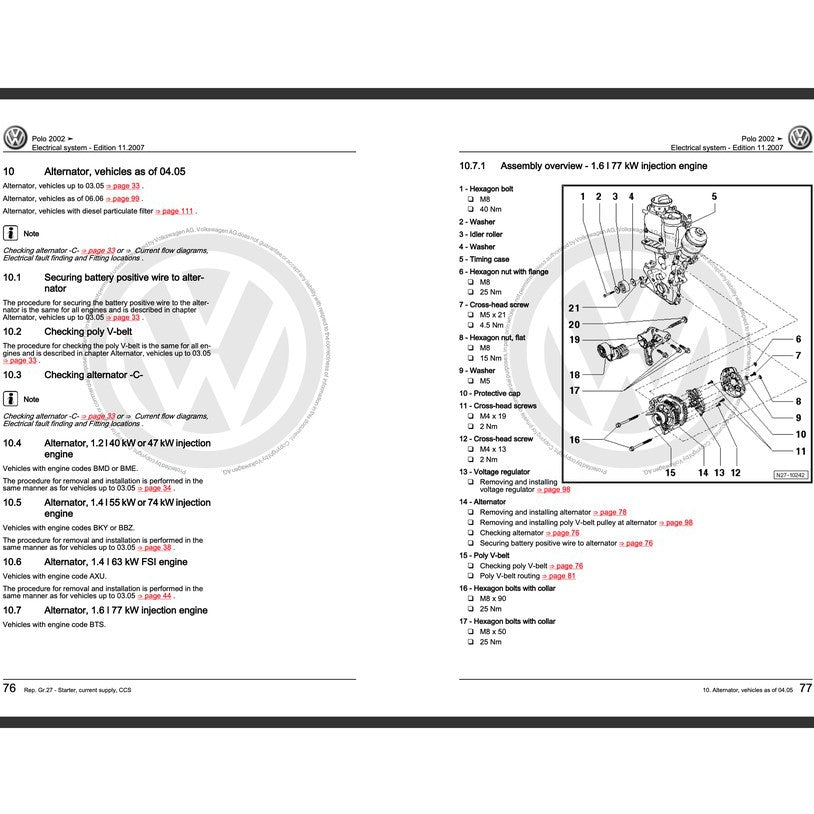

Electrical system (2001-2010)
EWD – From November 2001-2008
CAVEAT: THIS IS PRO/WORKSHOP GRADE MATERIAL, NOT A CONSUMER PRODUCT.
